Product Specifications
| # Manufacturer Number | P03Y02 |
| Min. Insert Diameter (Decimal Inch) | 0.3750" |
| Min.-Insert-Diameter-(Inch) | 3/8" |
| Min. Insert Diameter (mm) | 9.53mm |
| Max. Insert Diameter (Decimal Inch) | 0.4219" |
| Max. Insert Diameter (Inch) | 27/64" |
| Max. Insert Diameter (mm) | 10.72mm |
| Max Drill Depth (Decimal Inch) | 2.3800" |
| Max Drill Depth (Inch) | 2-3/8" |
| Max Drill Depth (mm) | 60.33mm |
| Flute Length (Decimal Inch) | 3.1600" |
| Flute Length (Inch) | 3-5/32" |
| Flute Length (mm) | 80.17mm |
| Overall Length (Decimal Inch) | 7.4400" |
| Overall Length (Inch) | 7-7/16" |
| Overall Length (mm) | 188.91mm |
| Reference Length (Decimal Inch) | 4.5900" |
| Reference Length (Decimal Inch) | 4-19/32" |
| Reference Length (Decimal Inch) | 116.68mm |
| Pipe Tap (Inch) | 1/16" |
| Morse Taper | #2 |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

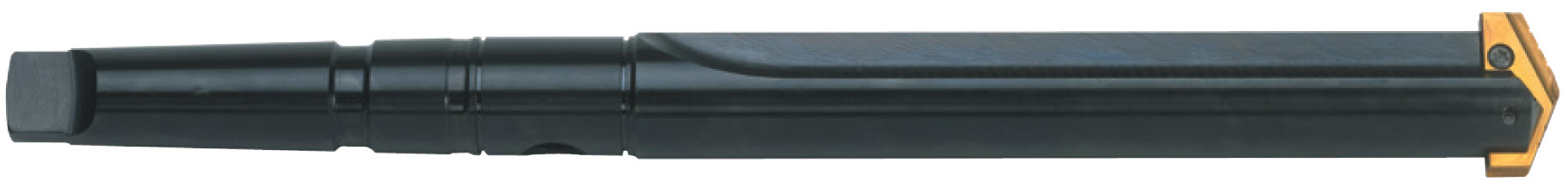

| Product Type | Spade Drill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
P03
Minimum Drill Diameter (Inch):
0.3750"
Minimum Drill Diameter (Decimal Inch):
3/8"""
Minimum Drill Diameter (mm):
9.53mm
Maximum Drill Diameter (Inch):
0.4219"
Maximum Drill Diameter (Decimal Inch):
27/64"""
Maximum Drill Diameter (mm):
10.72mm
Overall Length (Inch):
7-7/16"
Overall Length (Decimal Inch):
7.4400"""
Overall Length (mm):
7.4400"
Maximum Drill Depth (Inch):
2-3/8"""
Maximum Drill Depth (Decimal Inch):
2.3800"
Maximum Drill Depth (mm):
60.33mm"
Flute Type:
Straight
Shank Type:
Morse Taper
Material:
Steel
Finish/Coating:
Oxide
interval quantity:
1
