Product Specifications
| # Manufacturer Number | P08153 |
| Min. Insert Diameter (Decimal Inch) | 0.8594" |
| Min.-Insert-Diameter-(Inch) | 55/64" |
| Min. Insert Diameter (mm) | 21.83mm |
| Max. Insert Diameter (Decimal Inch) | 0.9375" |
| Max. Insert Diameter (Inch) | 15/16" |
| Max. Insert Diameter (mm) | 23.81mm |
| Max Drill Depth (Decimal Inch) | 4.7500" |
| Max Drill Depth (Inch) | 4-3/4" |
| Max Drill Depth (mm) | 120.65mm |
| Flute Length (Decimal Inch) | 5.8800" |
| Flute Length (Inch) | 5-7/8" |
| Flute Length (mm) | 149.23mm |
| Overall Length (Decimal Inch) | 11.1600" |
| Overall Length (Inch) | 11-5/32" |
| Overall Length (mm) | 283.37mm |
| Reference Length (Decimal Inch) | 7.6100" |
| Reference Length (Decimal Inch) | 7-39/64" |
| Reference Length (Decimal Inch) | 193.28mm |
| Pipe Tap (Inch) | 1/8" |
| Morse Taper | #3 |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

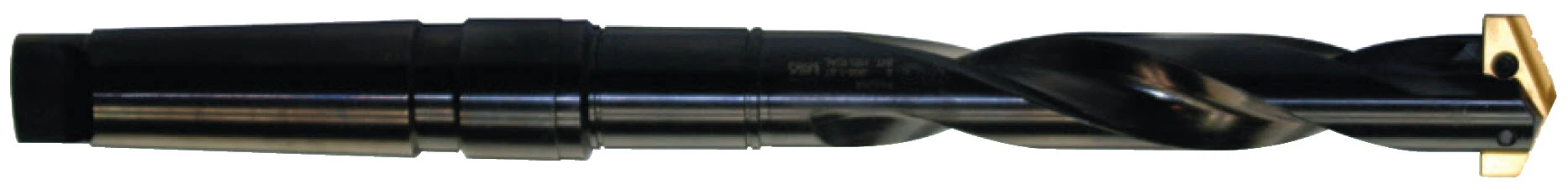

| Product Type | Spade Drill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
P08
Minimum Drill Diameter (Inch):
0.8594";Minimum Drill Diameter (Decimal Inch)=55/64""
Minimum Drill Diameter (mm):
21.83mm
Maximum Drill Diameter (Inch):
0.9375";Maximum Drill Diameter (Decimal Inch)=15/16""
Maximum Drill Diameter (mm):
23.81mm
Overall Length (Inch):
11-5/32";Overall Length (Decimal Inch)=11.1600""
Overall Length (mm):
11.1600";Maximum Drill Depth (Inch)=4-3/4""
Maximum Drill Depth (Decimal Inch):
4.7500";Maximum Drill Depth (mm)=120.65mm"
Flute Type:
Sprial
Shank Type:
Morse Taper
Material:
Steel
Finish/Coating:
Oxide
