Product Specifications
| # Manufacturer Number | P15708 |
| Min. Insert Diameter (Decimal Inch) | 3.5313" |
| Min.-Insert-Diameter-(Inch) | 3-17/32" |
| Min. Insert Diameter (mm) | 89.69mm |
| Max. Insert Diameter (Decimal Inch) | 4.5000" |
| Max. Insert Diameter (Inch) | 4-1/2" |
| Max. Insert Diameter (mm) | 114.30mm |
| Shank Diameter (Decimal Inch) | 1.0000" |
| Shank Diameter (Inch) | 1" |
| Shank Diameter (mm) | 25.40mm |
| Max Drill Depth (Decimal Inch) | 10.7500" |
| Max Drill Depth (Inch) | 10-3/4" |
| Max Drill Depth (mm) | 273.05mm |
| Flute Length (Decimal Inch) | 12.8800" |
| Flute Length (Inch) | 12-7/8" |
| Flute Length (mm) | 327.03mm |
| Overall Length (Decimal Inch) | 17.8800" |
| Overall Length (Inch) | 17-7/8" |
| Overall Length (mm) | 454.03mm |
| Shank Length (Decimal Inch) | 2.2800" |
| Shank Length (Inch) | 2-9/32" |
| Shank Length (mm) | 57.94mm |
| Reference Length (Decimal Inch) | 13.1300" |
| Reference Length (Decimal Inch) | 13-1/8" |
| Reference Length (Decimal Inch) | 333.38mm |
| Pipe Tap (Inch) | 1/2" |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

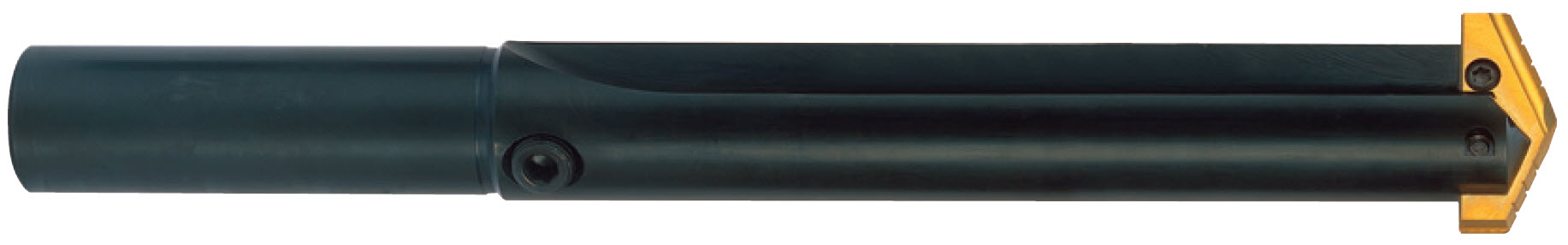

| Product Type | Spade Drill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
P15
Minimum Drill Diameter (Decimal Inch):
3.5313";Minimum Drill Diameter (Inch)=3 17/32"""""
Minimum Drill Diameter (mm):
89.69mm
Maximum Drill Diameter (Decimal Inch):
4.5000";Maximum Drill Diameter (Inch)=4-1/2"""""
Maximum Drill Diameter (mm):
114.30mm
Overall Length (Inch):
17-7/8";Overall Length (Decimal Inch)=17.8800"""""
Overall Length (mm):
17.8800";Maximum Drill Depth (Inch)=10-3/4"""""
Maximum Drill Depth (Decimal Inch):
10.7500";Maximum Drill Depth (mm)=273.05mm"""
Flute Type:
Straight
Shank Type:
Straight
Shank Diameter (Decimal Inch):
1.0000";Shank Diameter (Inch)=1"""""
Shank Diameter (mm):
25.40mm
Material:
Steel
Finish/Coating:
Oxide
interval quantity:
1
