| Manufacturer Part Number | P25102 |
| Min. Insert Diameter (Decimal Inch) | 0.7031" |
| Min.-Insert-Diameter-(Inch) | 45/64" |
| Min. Insert Diameter (mm) | 17.86mm |
| Max. Insert Diameter (Decimal Inch) | 0.9375" |
| Max. Insert Diameter (Inch) | 15/16" |
| Max. Insert Diameter (mm) | 23.81mm |
| Max Drill Depth (Decimal Inch) | 2.6300" |
| Max Drill Depth (Inch) | 2-5/8" |
| Max Drill Depth (mm) | 66.68mm |
| Flute Length (Decimal Inch) | 4.2200" |
| Flute Length (Inch) | 4-7/32" |
| Flute Length (mm) | 107.16mm |
| Overall Length (Decimal Inch) | 6.5000" |
| Overall Length (Inch) | 6-1/2" |
| Overall Length (mm) | 165.10mm |
| Reference Length (Decimal Inch) | 4.3600" |
| Reference Length (Decimal Inch) | 4-23/64" |
| Reference Length (Decimal Inch) | 110.73mm |
| Pipe Tap (Inch) | 1/8" |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

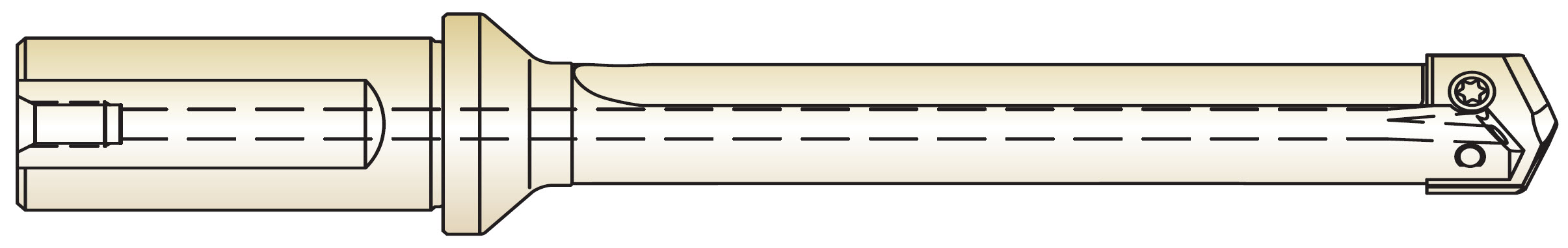

| Product Type | Spade Drill Holder |
