Product Specifications
| # Manufacturer Number | P27001 |
| Min. Insert Diameter (Decimal Inch) | 0.5156" |
| Min.-Insert-Diameter-(Inch) | 33/64" |
| Min. Insert Diameter (mm) | 13.10mm |
| Max. Insert Diameter (Decimal Inch) | 0.6875" |
| Max. Insert Diameter (Inch) | 11/16" |
| Max. Insert Diameter (mm) | 17.46mm |
| Max Drill Depth (Decimal Inch) | 2.5000" |
| Max Drill Depth (Inch) | 2-1/2" |
| Max Drill Depth (mm) | 63.50mm |
| Flute Length (Decimal Inch) | 3.6300" |
| Flute Length (Inch) | 3-5/8" |
| Flute Length (mm) | 92.08mm |
| Overall Length (Decimal Inch) | 5.6600" |
| Overall Length (Inch) | 5-21/32" |
| Overall Length (mm) | 143.67mm |
| Reference Length (Decimal Inch) | 3.7300" |
| Reference Length (Decimal Inch) | 3-47/64" |
| Reference Length (Decimal Inch) | 94.85mm |
| Pipe Tap (Inch) | 1/8" |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

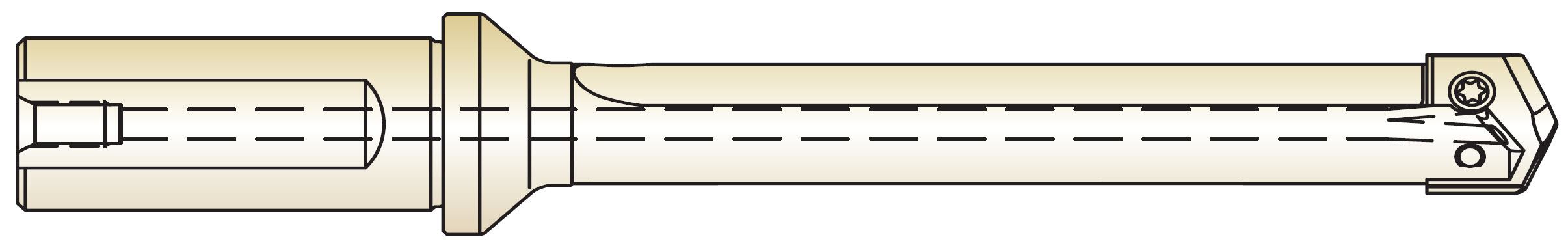

| Product Type | Spade Drill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
P27
Minimum Drill Diameter (Decimal Inch):
0.5156"
Minimum Drill Diameter (Inch):
33/64"""
Minimum Drill Diameter (mm):
13.10mm
Maximum Drill Diameter (Decimal Inch):
0.6875"
Maximum Drill Diameter (Inch):
11/16"""
Maximum Drill Diameter (mm):
17.46mm
Overall Length (Inch):
5-21/32"
Overall Length (Decimal Inch):
5.6600"""
Overall Length (mm):
5.6600"
Maximum Drill Depth (Inch):
2-1/2"""
Maximum Drill Depth (Decimal Inch):
2.5000"
Maximum Drill Depth (mm):
63.50mm"
Flute Type:
Straight
Shank Type:
Flanged
Material:
Steel
Finish/Coating:
Oxide
interval quantity:
1
