| Manufacturer Part Number | P27203 |
| Min. Insert Diameter (Decimal Inch) | 0.9688" |
| Min.-Insert-Diameter-(Inch) | 31/32" |
| Min. Insert Diameter (mm) | 24.61mm |
| Max. Insert Diameter (Decimal Inch) | 1.3750" |
| Max. Insert Diameter (Inch) | 1-3/8" |
| Max. Insert Diameter (mm) | 34.93mm |
| Max Drill Depth (Decimal Inch) | 7.3800" |
| Max Drill Depth (Inch) | 7-3/8" |
| Max Drill Depth (mm) | 187.33mm |
| Flute Length (Decimal Inch) | 9.0600" |
| Flute Length (Inch) | 9-1/16" |
| Flute Length (mm) | 230.19mm |
| Overall Length (Decimal Inch) | 11.3400" |
| Overall Length (Inch) | 11-11/32" |
| Overall Length (mm) | 288.13mm |
| Reference Length (Decimal Inch) | 9.2000" |
| Reference Length (Decimal Inch) | 9-13/64" |
| Reference Length (Decimal Inch) | 233.76mm |
| Pipe Tap (Inch) | 1/4" |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

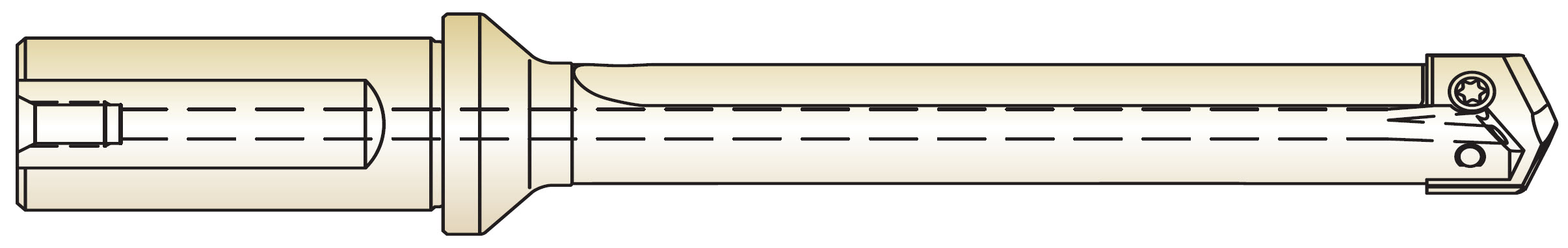

| Product Type | Spade Drill Holder |
