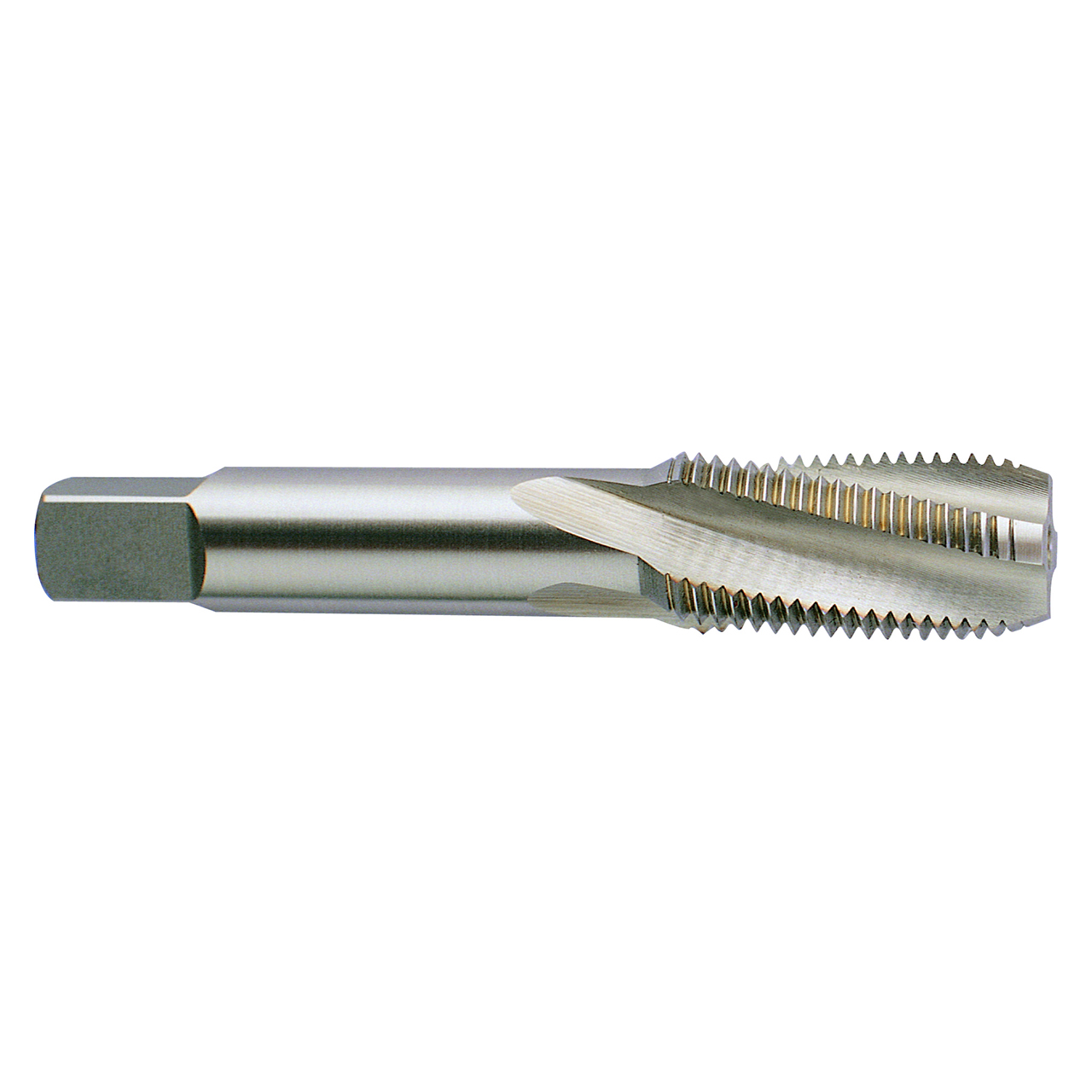

Product Specifications
| EDP Number | R0860 |
| Size | 1-1/4" |
| Pitch | 11-1/2" |
| Diameter (Decimal Inch) | 1.2500" |
| Diameter (mm) | 31.75mm |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (mm) | 101.60mm |
| Thread Length (Decimal Inch) | 1.7500" |
| Thread Length (mm) | 44.45mm |
| Square Length (Decimal Inch) | 0.9400" |
| Square Length (mm) | 23.88mm |
| Shank Diameter (Decimal Inch) | 1.3125" |
| Shank Diameter (mm) | 33.34mm |
| Square Size (Decimal Inch) | 0.9840" |
| Square Size (mm) | 24.99mm |
| Drill Size (Decimal Inch) | 1.4844" |
| Drill Size (mm) | 37.70mm |
| Useable Length (Decimal Inch) | 1.7500" |
| Useable Length (mm) | 44.45mm |
| Number of Flutes | 4 |
| Series | R0 |
| Chamfer Length | 2P-3P |
| Thread Series | NPTF |
| Coating | TiN |
| Material | HSSE-V3 |
| Blank Standard | 311 |
| Helix Angle (Degree) | 15 Degree |
| Length/Diameter | 2.5 x D |
| Chamfer Type | Modified Bottoming |
| Tap Type | NPT(F) Taper Pipe Tap |
| Shank Type | Square |
| Trade Name | YG-Pipe Taps |
| Product Type | Spiral Flute Pipe Tap |
