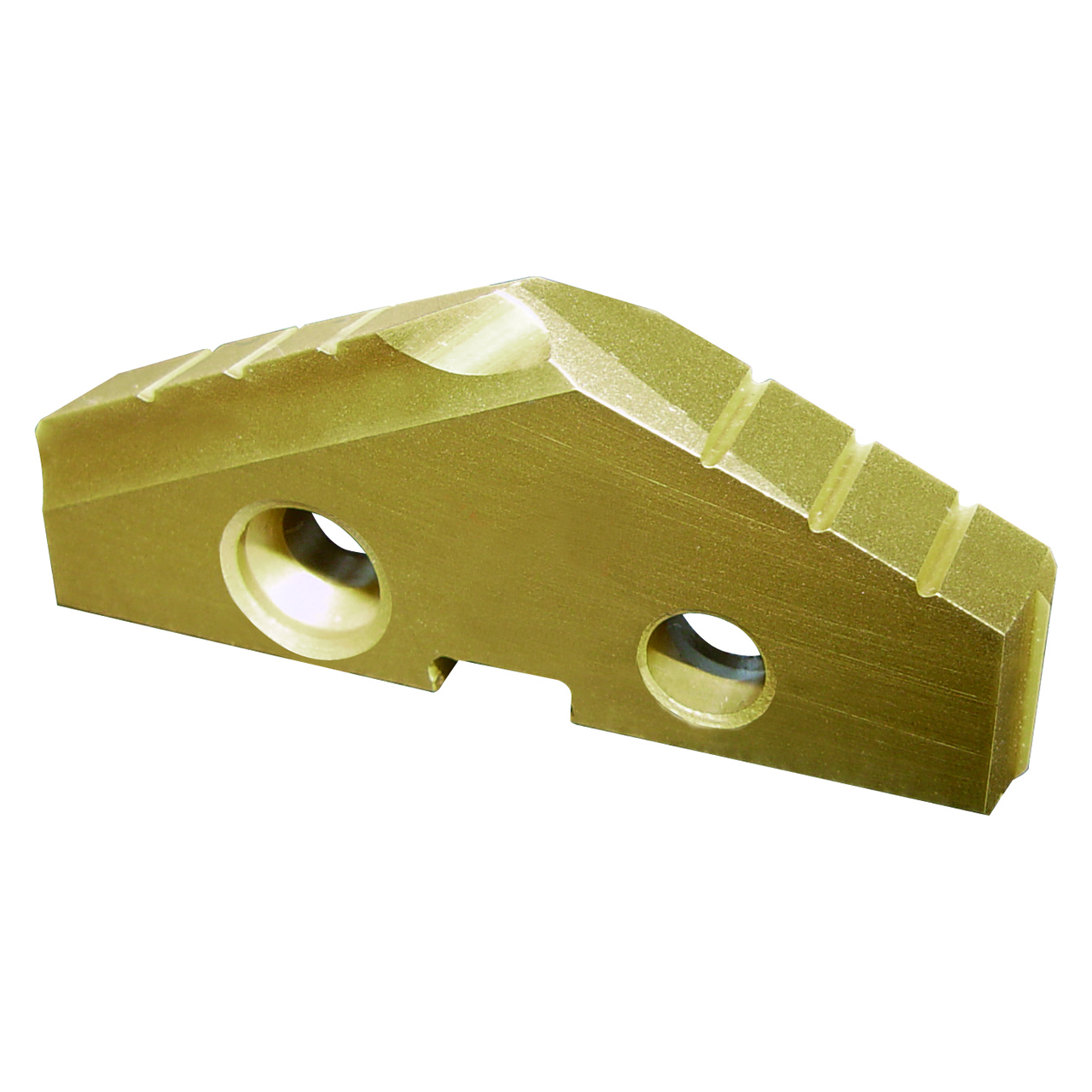

Product Specifications
| EDP Number | S01111 |
| Diameter (Decimal Inch) | 0.7900" |
| Diameter (Inch) | 37/47" |
| Diameter (mm) | 20.00mm |
| Thickness (Decimal Inch) | 0.1575" |
| Thickness (Inch) | 5/32" |
| Thickness (mm) | 4.00mm |
| Insert Height (Decimal Inch) | 0.5620" |
| Insert Height (Inch) | 9/16" |
| Insert Height (mm) | 14.27mm |
| Series | S01 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series 1 |
| Grade | M4 |
| Trade Name | YG Spade Drill HSS |
| Application | P,M,K,N |
| Coating | TiN |
| Material | HSS |
| Product Type | Spade Drill Insert |
