Product Specifications
| EDP Number | S01425 |
| Diameter (Decimal Inch) | 2.3100" |
| Diameter (Inch) | 2-5/16" |
| Diameter (mm) | 58.74mm |
| Thickness (Decimal Inch) | 0.3125" |
| Thickness (Inch) | 5/16" |
| Thickness (mm) | 7.94mm |
| Insert Height (Decimal Inch) | 0.9370" |
| Insert Height (Inch) | 15/16" |
| Insert Height (mm) | 23.80mm |
| Series | S01 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series 4 |
| Grade | M4 |
| Trade Name | YG Spade Drill HSS |
| Application | P,M,K,N |
| Coating | TiN |
| Material | HSS |

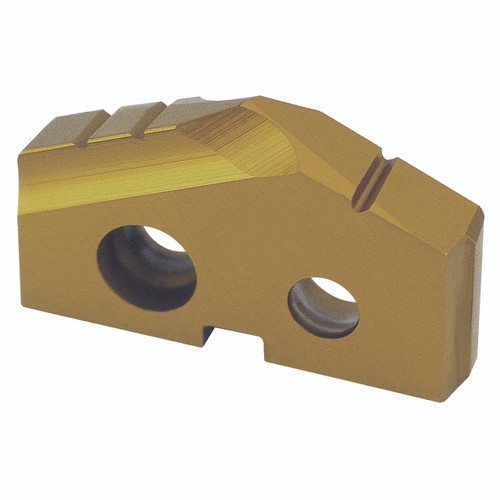

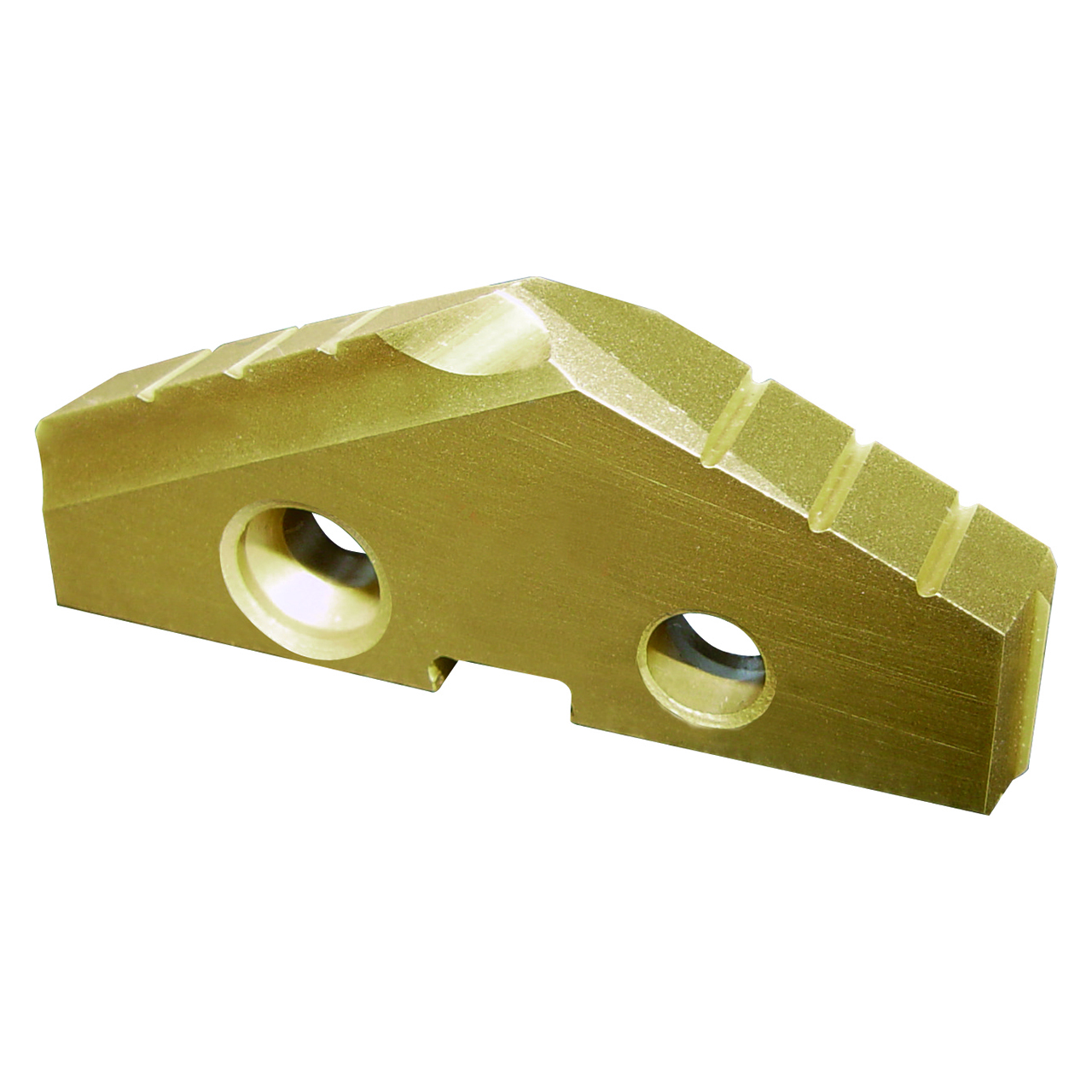

| Product Type | Spade Drill Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
S01
Diameter (mm):
58.74mm
Series Code/Seat Size:
Series 4
Material:
HSS
Finish/Coating:
TiN
Thickness (Inch):
5/16"
Thickness (Decimal Inch):
0.3125"
Thickness (mm):
7.94mm
Included Angle:
132 Degree
interval quantity:
1
