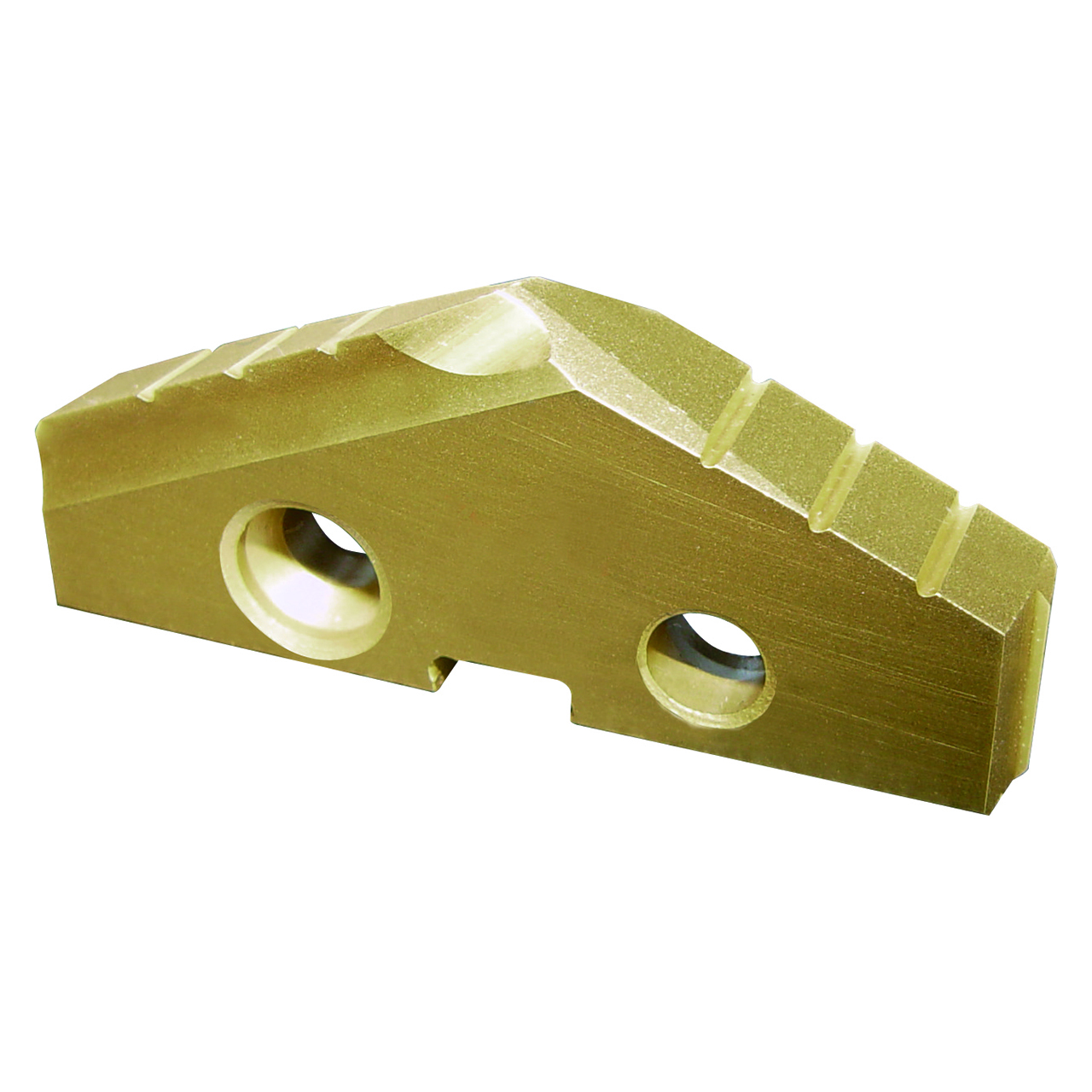

| Manufacturer Part Number | S03804 |
| Diameter (Decimal Inch) | 4.1300" |
| Diameter (Inch) | 4-1/8" |
| Diameter (mm) | 104.78mm |
| Thickness (Decimal Inch) | 0.4375" |
| Thickness (Inch) | 7/16" |
| Thickness (mm) | 11.11mm |
| Insert Height (Decimal Inch) | 1.2500" |
| Insert Height (Inch) | 1-1/4" |
| Insert Height (mm) | 31.75mm |
| Series | S03 |
| Point Angle (Degree) | 144 Degree |
| Holder Type | Series 7-8 |
| Grade | M4 |
| Trade Name | YG Spade Drill HSS |
| Application | P,M,K,N |
| Coating | TiAlN |
| Material | HSS |

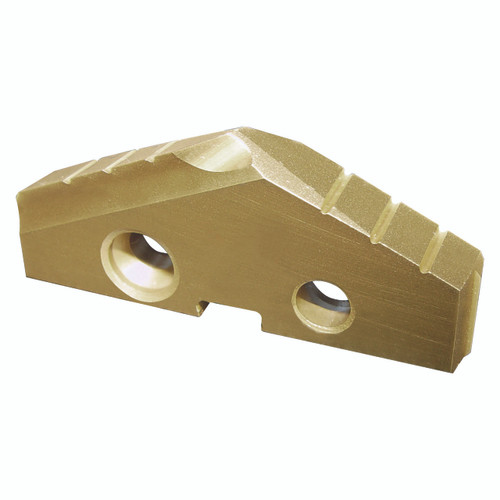

| Product Type | Spade Drill Insert |
