| Manufacturer Part Number | S08116 |
| Diameter (Decimal Inch) | 0.8700" |
| Diameter (Inch) | 13/15" |
| Diameter (mm) | 22.00mm |
| Thickness (Decimal Inch) | 0.1575" |
| Thickness (Inch) | 5/32" |
| Thickness (mm) | 4.00mm |
| Insert Height (Decimal Inch) | 0.5620" |
| Insert Height (Inch) | 9/16" |
| Insert Height (mm) | 14.27mm |
| Series | S08 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series 1 |
| Grade | T15 |
| Trade Name | YG Spade Drill Super Cobalt |
| Application | P,K |
| Coating | TiAlN |
| Material | Super Cobalt |

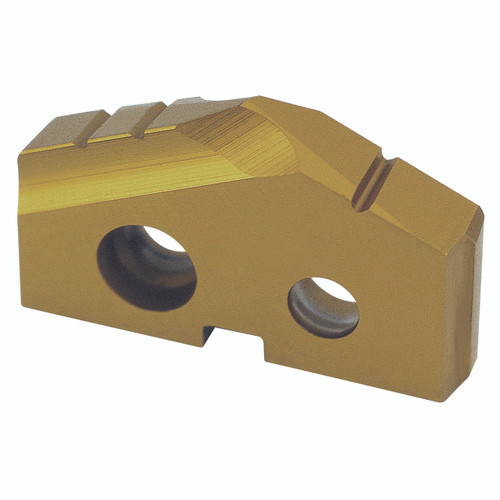

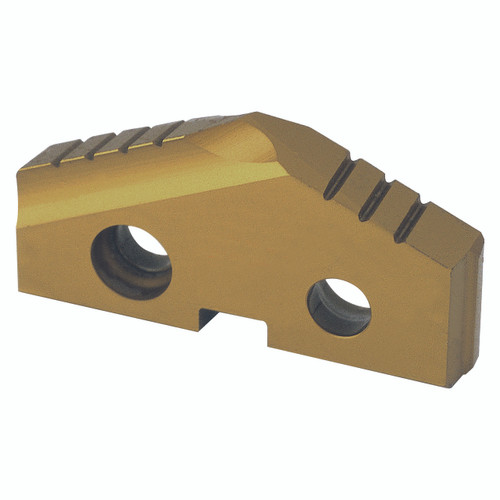

| Product Type | Spade Drill Insert |
