| Manufacturer Part Number | S11Y08 |
| Diameter (Decimal Inch) | 0.4100" |
| Diameter (Inch) | 31/75" |
| Diameter (mm) | 10.50mm |
| Thickness (Decimal Inch) | 0.0945" |
| Thickness (Inch) | 3/32" |
| Thickness (mm) | 2.40mm |
| Insert Height (Decimal Inch) | 0.3610" |
| Insert Height (Inch) | 13/36" |
| Insert Height (mm) | 9.17mm |
| Series | S11 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series Y |
| Grade | M48 |
| Trade Name | YG Spade Drill Premium Cobalt |
| Application | P,K |
| Coating | TiN |
| Material | Premium Cobalt |

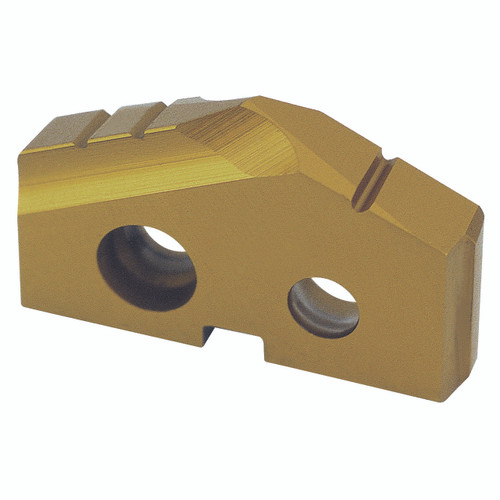

| Product Type | Spade Drill Insert |
