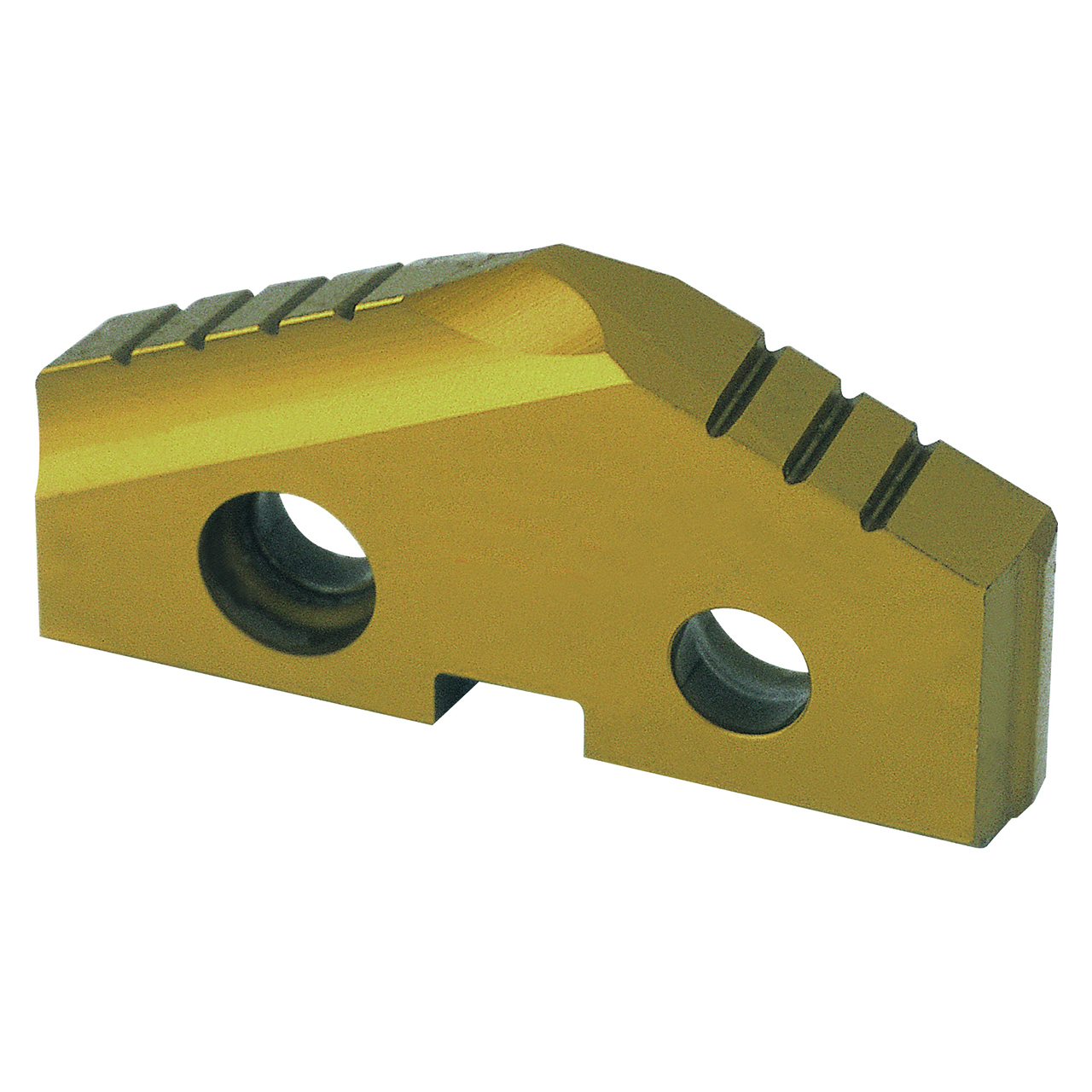

Product Specifications
| EDP Number | S21311 |
| Diameter (Decimal Inch) | 1.5700" |
| Diameter (Inch) | 1-23/40" |
| Diameter (mm) | 40.00mm |
| Thickness (Decimal Inch) | 0.2520" |
| Thickness (Inch) | 1/4" |
| Thickness (mm) | 6.40mm |
| Insert Height (Decimal Inch) | 0.8120" |
| Insert Height (Inch) | 13/16" |
| Insert Height (mm) | 20.62mm |
| Series | S21 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series 3 |
| Grade | (C2)K20 |
| Trade Name | YG Spade Drill (C2) K20 Carbide |
| Application | P,M,N |
| Coating | TiN |
| Material | Carbide |
| Product Type | Spade Drill Insert |
