| Manufacturer Part Number | S21Z02 |
| Diameter (Decimal Inch) | 0.4500" |
| Diameter (Inch) | 24/53" |
| Diameter (mm) | 11.50mm |
| Thickness (Decimal Inch) | 0.0945" |
| Thickness (Inch) | 3/32" |
| Thickness (mm) | 2.40mm |
| Insert Height (Decimal Inch) | 0.3620" |
| Insert Height (Inch) | 21/58" |
| Insert Height (mm) | 9.19mm |
| Series | S21 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series Z |
| Grade | (C2)K20 |
| Trade Name | YG Spade Drill (C2) K20 Carbide |
| Application | P,M,N |
| Coating | TiN |
| Material | Carbide |

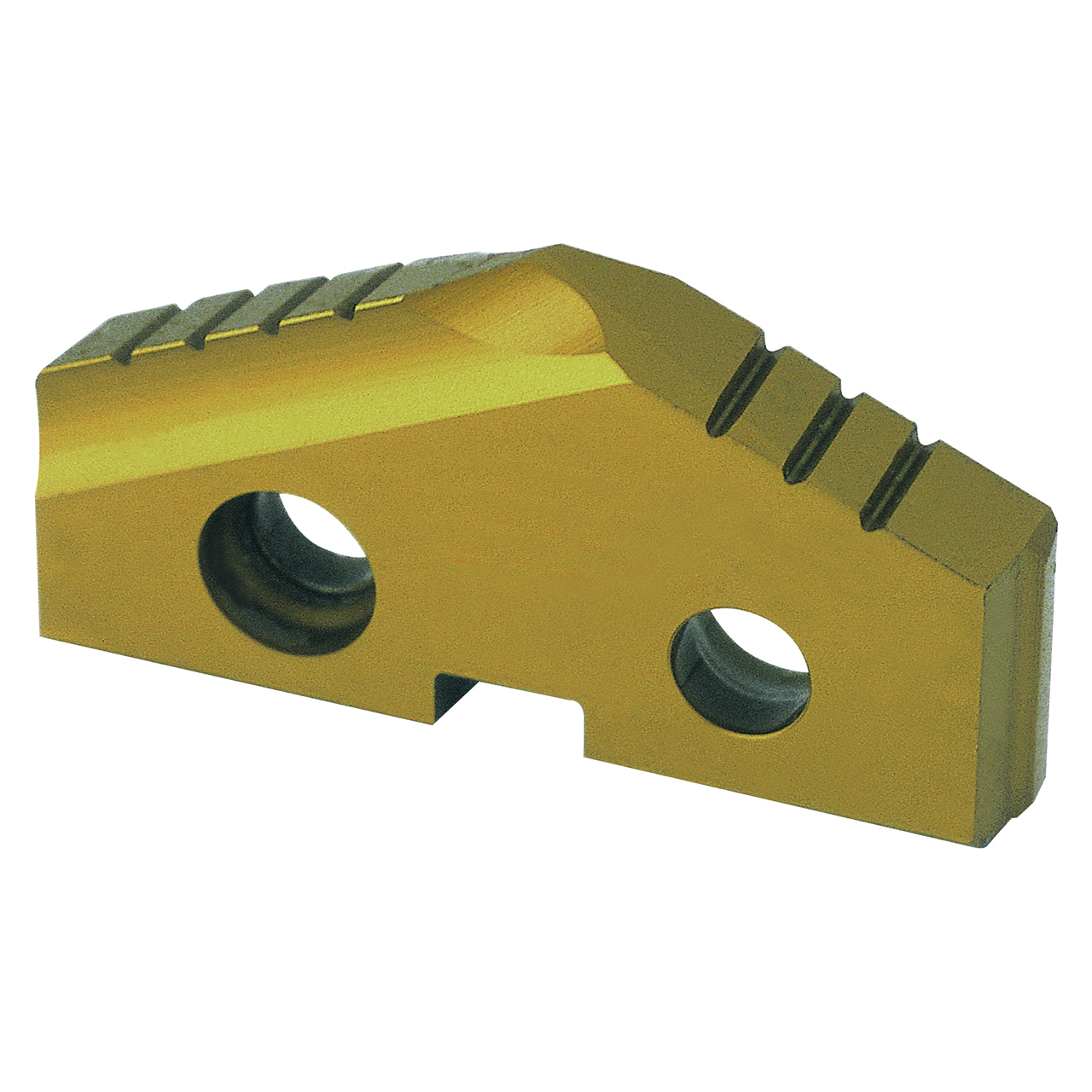

| Product Type | Spade Drill Insert |
