| Manufacturer Part Number | S23301 |
| Diameter (Decimal Inch) | 1.4100" |
| Diameter (Inch) | 1-13/32" |
| Diameter (mm) | 35.72mm |
| Thickness (Decimal Inch) | 0.2500" |
| Thickness (Inch) | 1/4" |
| Thickness (mm) | 6.35mm |
| Insert Height (Decimal Inch) | 0.8120" |
| Insert Height (Inch) | 13/16" |
| Insert Height (mm) | 20.62mm |
| Series | S23 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series 3 |
| Grade | (C2)K20 |
| Trade Name | YG Spade Drill (C2) K20 Carbide |
| Application | P,M,N |
| Coating | TiAlN |
| Material | Carbide |

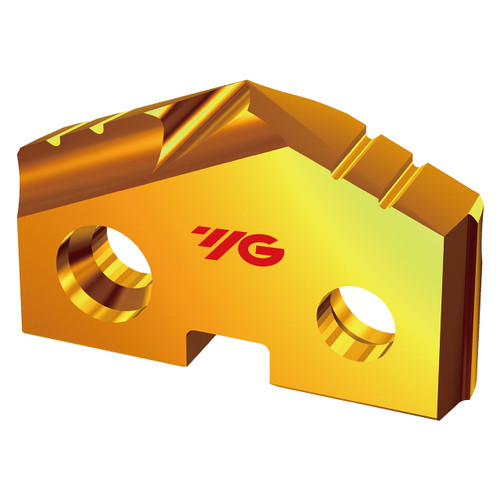

| Product Type | Spade Drill Insert |
