Product Specifications
| EDP Number | SEMD98012040 |
| Diameter (Decimal Inch) | 0.0472" |
| Diameter (Inch) | 1/21" |
| Diameter (mm) | 1.20mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.0787" |
| Length of Cut (Inch) | 3/38" |
| Length of Cut (mm) | 2.00mm |
| Overall Length (Decimal Inch) | 1.5748" |
| Overall Length (Inch) | 1-23/40" |
| Overall Length (mm) | 40.00mm |
| Ball Nose Radius (Decimal Inch) | 0.0236" |
| Ball Nose Radius (Inch) | 2/85" |
| Ball Nose Radius (mm) | 0.60mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Cut Type | Center Cut |
| Corner Type | Ball Nose |
| Series | SEMD98 |
| Material | Carbide |

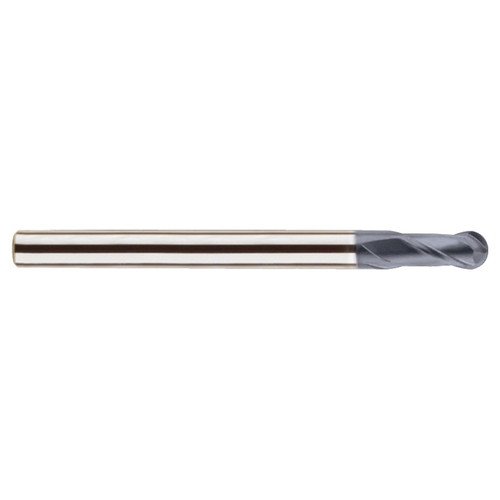

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Diameter (Decimal Inch):
0.0472"
Diameter (Inch):
1/21"
Diameter (mm):
1.20mm
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (Inch):
13/55"
Shank Diameter (mm):
6.00mm
Length of Cut (Decimal Inch):
0.0787"
Length of Cut (Inch):
3/38"
Length of Cut (mm):
2.00mm
Overall Length (Decimal Inch):
1.5748"
Overall Length (Inch):
1-23/40"
Overall Length (mm):
40.00mm
Shank Style:
Plain
Helix Angle:
30 Degree
Finish/Coating:
AlCrN
Number of Flutes:
2
Material:
Carbide
Cut Type:
Center Cut
Cutting Direction:
Right
