Product Specifications
| EDP Number | SEME350194S |
| Diameter (Decimal Inch) | 0.0748" |
| Diameter (Inch) | 3/40" |
| Diameter (mm) | 1.90mm |
| Shank Diameter (Decimal Inch) | 0.7480" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.00mm |
| Length of Cut (Decimal Inch) | 0.1969" |
| Length of Cut (Inch) | 12/61" |
| Length of Cut (mm) | 5.00mm |
| Overall Length (Decimal Inch) | 1.9685" |
| Overall Length (Inch) | 1-31/32" |
| Overall Length (mm) | 50.00mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Series | SEME35 |
| Material | Carbide |

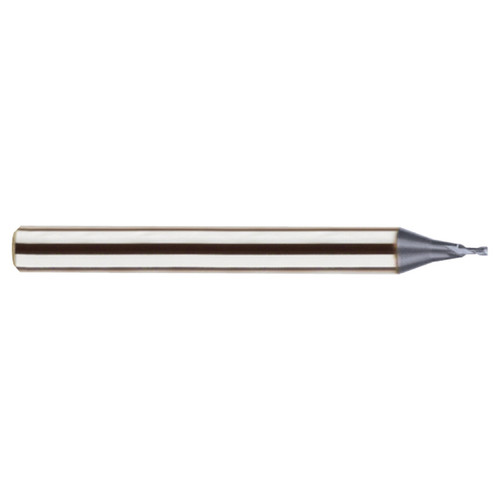

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Number of Flutes:
2
Helix Angle:
30 Degree
interval quantity:
1
