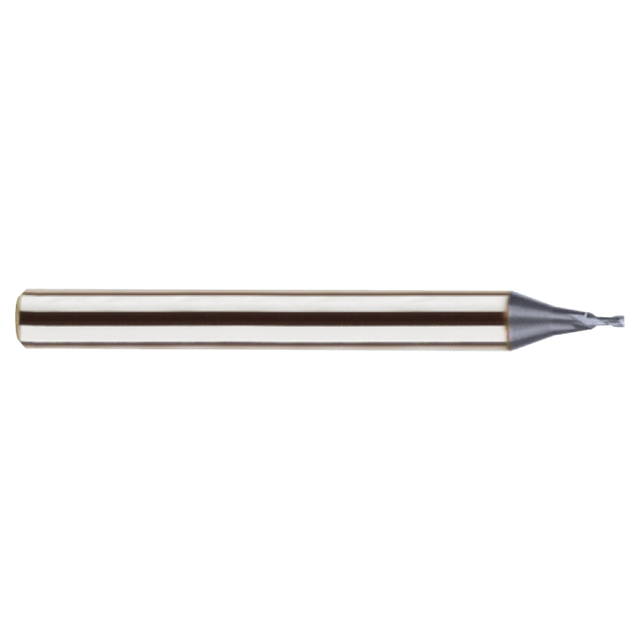

Product Specifications
| EDP Number | SEME3514014S |
| Diameter (Decimal Inch) | 0.5512" |
| Diameter (Inch) | 43/78" |
| Diameter (mm) | 14.00mm |
| Shank Diameter (Decimal Inch) | 0.5512" |
| Shank Diameter (Inch) | 43/78" |
| Shank Diameter (mm) | 14.00mm |
| Length of Cut (Decimal Inch) | 1.3780" |
| Length of Cut (Inch) | 1 17/45" |
| Length of Cut (mm) | 35.00mm |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (Inch) | 3-15/16" |
| Overall Length (mm) | 100.00mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Series | SEME35 |
| Material | Carbide |
| Product Type | Square End Mill |
