Product Specifications
| EDP Number | SEME610300530 |
| Diameter (Decimal Inch) | 0.1181" |
| Diameter (mm) | 3.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.1772" |
| Length of Cut (mm) | 4.50mm |
| Overall Length (Decimal Inch) | 2.7559" |
| Overall Length (mm) | 70.00mm |
| Corner Radius (Decimal Inch) | 0.0197" |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Corner Radius (mm) | 0.50mm |
| Cut Type | Center Cut |
| Corner Type | Corner Radius |
| Length Type | Long Neck |
| Series | SEME61 |
| Material | Carbide |

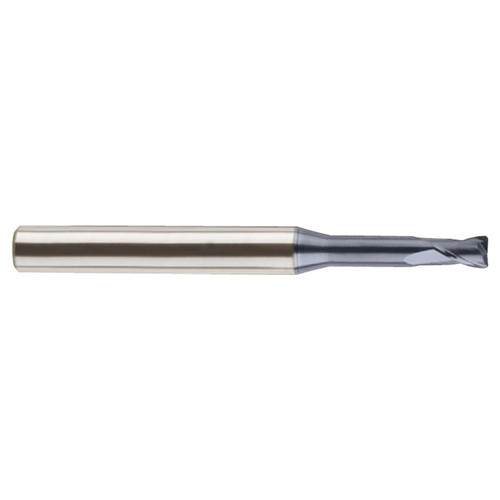

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Decimal Inch):
0.1181"
Mill Diameter (Inch):
2/17"
Mill Diameter (mm):
3.00mm
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (Inch):
13/55"
Shank Diameter (mm):
6.00mm
Length of Cut (Decimal Inch):
0.1772"
Length of Cut (Inch):
14/79"
Length of Cut (mm):
4.50mm
Overall Length (Decimal Inch):
2.7559"
Overall Length (Inch):
2-65/86"
Overall Length (mm):
70.00mm
Finish/Coating:
AlCrN
Number of Flutes:
2
Material:
Carbide
Cutting Direction:
Right
interval quantity:
1
