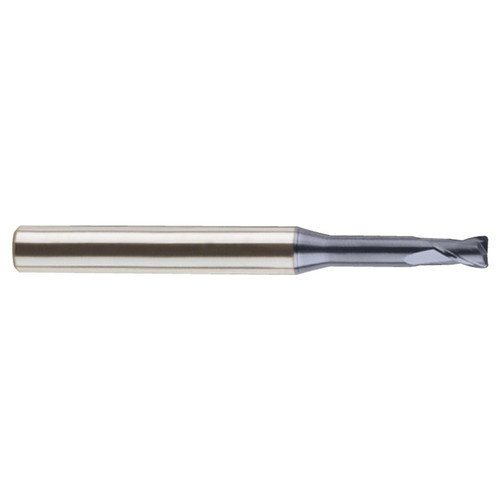

YG1 SEME610301010 | 0.1181" Diameter x 0.2362" Shank x 0.1772" LOC x 1.9685" OAL x 0.0039" Radius 2 Flute AlCrN Coated Carbide Corner Radius with Long Neck End Mill

Brand:

YG1

Mill Diameter (Inch):

2/17"

Mill Diameter (Decimal Inch):

0.1181"

Mill Diameter (mm):

3.00mm

Number of Flutes:

2

End Type:

Corner Radius

Corner Radius (Inch):

1/254"

Corner Radius (Decimal Inch):

0.0039"

Corner Radius (mm):

0.10mm

Length of Cut (Inch):

14/79"

Length of Cut (Decimal Inch):

0.1772"

Length of Cut (mm):

4.50mm

Material:

Carbide

Finish/Coating:

AlCrN

Shank Diameter (Inch):

13/55"

Shank Diameter (Decimal Inch):

0.2362"

Shank Diameter (mm):

6.00mm

Overall Length (Inch):

1-31/32"

Overall Length (Decimal Inch):

1.9685"

Overall Length (mm):

50.00mm

SKU:

25057910

Weight:

0.04 LBS
