Product Specifications
| EDP Number | SEME610400112 |
| Diameter (Decimal Inch) | 0.1575" |
| Diameter (Inch) | 3/19" |
| Diameter (mm) | 4.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.2362" |
| Length of Cut (Inch) | 13/55" |
| Length of Cut (mm) | 6.00mm |
| Overall Length (Decimal Inch) | 1.9685" |
| Overall Length (Inch) | 1-31/32" |
| Overall Length (mm) | 50.00mm |
| Corner Radius (Decimal Inch) | 0.0039" |
| Corner Radius (Inch) | 1/254" |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Corner Radius (mm) | 0.10mm |
| Cut Type | Center Cut |
| Corner Type | Corner Radius |
| Length Type | Long Neck |
| Series | SEME61 |
| Material | Carbide |

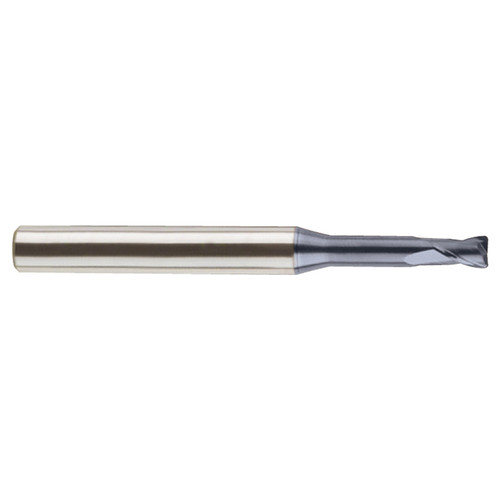

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
