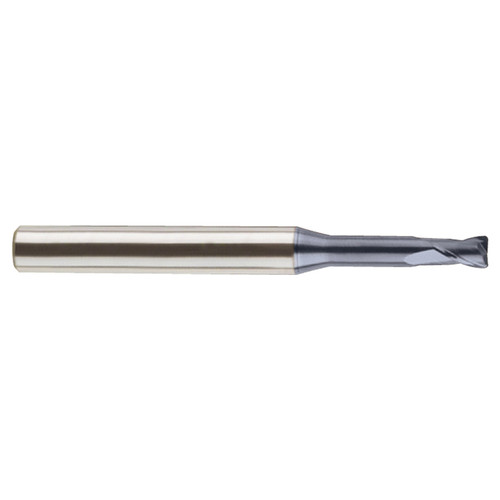

YG1 SEME610400512 | 0.1575" Diameter x 0.2362" Shank x 0.2362" LOC x 1.9685" OAL x 0.0197" Radius 2 Flute AlCrN Coated Carbide Corner Radius with Long Neck End Mill

Brand:

YG1

Diameter (Decimal Inch):

0.1575"

Diameter (Inch):

3/19"

Diameter (mm):

4.00mm

Shank Diameter (Decimal Inch):

0.2362"

Shank Diameter (Inch):

13/55"

Shank Diameter (mm):

6.00mm

Length of Cut (Decimal Inch):

0.2362"

Length of Cut (Inch):

13/55"

Length of Cut (mm):

6.00mm

Overall Length (Decimal Inch):

1.9685"

Overall Length (Inch):

1-31/32"

Overall Length (mm):

50.00mm

Corner Radius (Decimal Inch):

0.0197"

Corner Radius (Inch):

5/254"

Corner Radius (mm):

0.50mm

Shank Style:

Plain

Helix Angle:

30 Degree

Finish/Coating:

AlCrN

Number of Flutes:

2

Material:

Carbide

Cut Type:

Center Cut

Cutting Direction:

Right

interval quantity:

1

SKU:

25057953

UPC:

Weight:

0.04 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout
