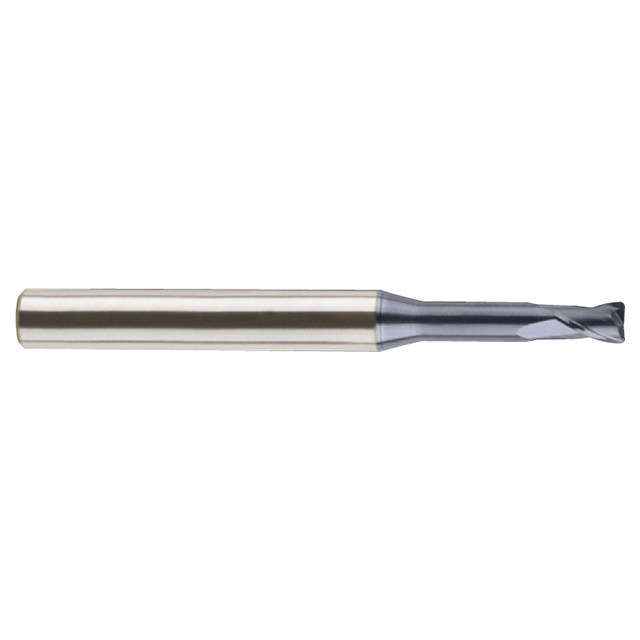

Product Specifications
| EDP Number | SEME6120010 |
| Diameter (Decimal Inch) | 0.7874" |
| Diameter (Inch) | 37/47" |
| Diameter (mm) | 20.00mm |
| Shank Diameter (Decimal Inch) | 0.7874" |
| Shank Diameter (Inch) | 37/47" |
| Shank Diameter (mm) | 20.00mm |
| Length of Cut (Decimal Inch) | 0.9843" |
| Length of Cut (Inch) | 62/63" |
| Length of Cut (mm) | 25.00mm |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (Inch) | 3-15/16" |
| Overall Length (mm) | 100.00mm |
| Corner Radius (Decimal Inch) | 0.0039" |
| Corner Radius (Inch) | 1/254" |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Corner Radius (mm) | 0.10mm |
| Cut Type | Center Cut |
| Corner Type | Corner Radius |
| Length Type | Long Neck |
| Series | SEME61 |
| Material | Carbide |
| Product Type | Corner Radius End Mill |
