Product Specifications
| EDP Number | SEME7006045 |
| Diameter (Decimal Inch) | 0.2362" |
| Diameter (Inch) | 13/55" |
| Diameter (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 1.7717" |
| Length of Cut (Inch) | 1 71/92" |
| Length of Cut (mm) | 45.00mm |
| Overall Length (Decimal Inch) | 5.9055" |
| Overall Length (Inch) | 5-48/53" |
| Overall Length (mm) | 150.00mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Length Type | Long Length |
| Series | SEME70 |
| Material | Carbide |

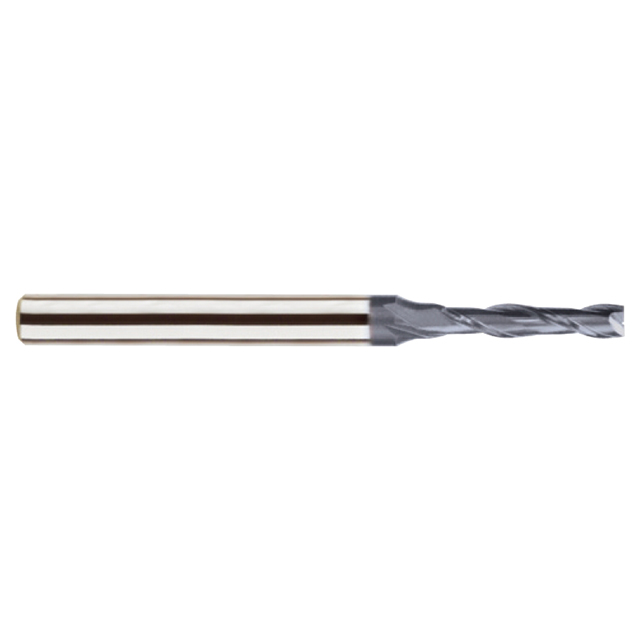

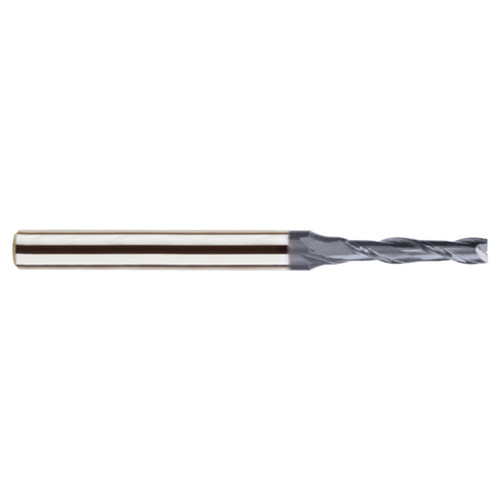

| Product Type | Square End Mill |
