Product Specifications
| EDP Number | SEME7508040 |
| Diameter (Decimal Inch) | 0.3150" |
| Diameter (Inch) | 23/73" |
| Diameter (mm) | 8.00mm |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (mm) | 8.00mm |
| Length of Cut (Decimal Inch) | 1.5748" |
| Length of Cut (Inch) | 1 23/40" |
| Length of Cut (mm) | 40.00mm |
| Overall Length (Decimal Inch) | 3.5433" |
| Overall Length (Inch) | 3-25/46" |
| Overall Length (mm) | 90.00mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 45 Degree |
| Coating | AlCrN |
| Number of Flutes | 6 |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Length Type | Regular |
| Series | SEME75 |
| Material | Carbide |

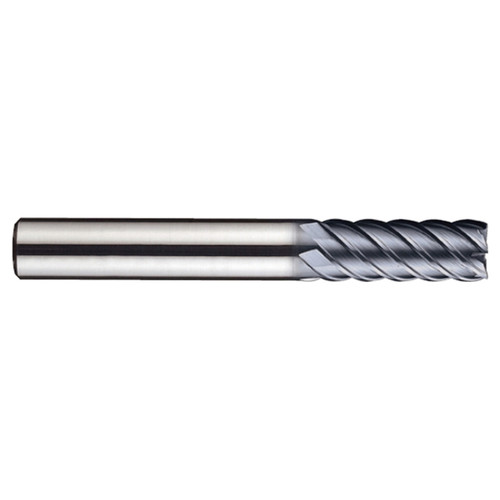

| Product Type | Square End Mill |
