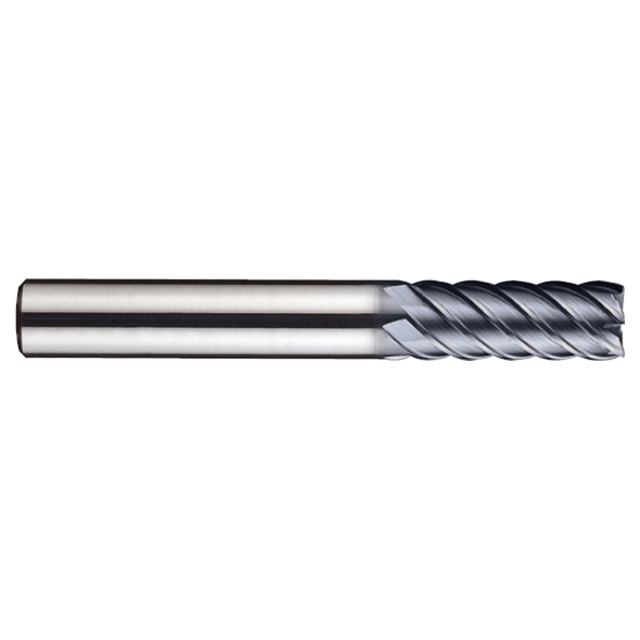

Product Specifications
| EDP Number | SEME7508040130 |
| Diameter (Decimal Inch) | 0.3150" |
| Diameter (Inch) | 23/73" |
| Diameter (mm) | 8.00mm |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (mm) | 8.00mm |
| Length of Cut (Decimal Inch) | 1.5748" |
| Length of Cut (Inch) | 1 23/40" |
| Length of Cut (mm) | 40.00mm |
| Overall Length (Decimal Inch) | 5.1181" |
| Overall Length (Inch) | 5-2/17" |
| Overall Length (mm) | 130.00mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 45 Degree |
| Coating | AlCrN |
| Number of Flutes | 6 |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Length Type | Regular |
| Series | SEME75 |
| Material | Carbide |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Number of Flutes:
6
Helix Angle:
45 Degree
interval quantity:
1
