Product Specifications
| EDP Number | SEME7516050 |
| Diameter (Decimal Inch) | 0.6299" |
| Diameter (Inch) | 17/27" |
| Diameter (mm) | 16.00mm |
| Shank Diameter (Decimal Inch) | 0.6299" |
| Shank Diameter (Inch) | 17/27" |
| Shank Diameter (mm) | 16.00mm |
| Length of Cut (Decimal Inch) | 1.9685" |
| Length of Cut (Inch) | 1 31/32" |
| Length of Cut (mm) | 50.00mm |
| Overall Length (Decimal Inch) | 4.3307" |
| Overall Length (Inch) | 4-1/3" |
| Overall Length (mm) | 110.00mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 45 Degree |
| Coating | AlCrN |
| Number of Flutes | 6 |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Length Type | Regular |
| Series | SEME75 |
| Material | Carbide |

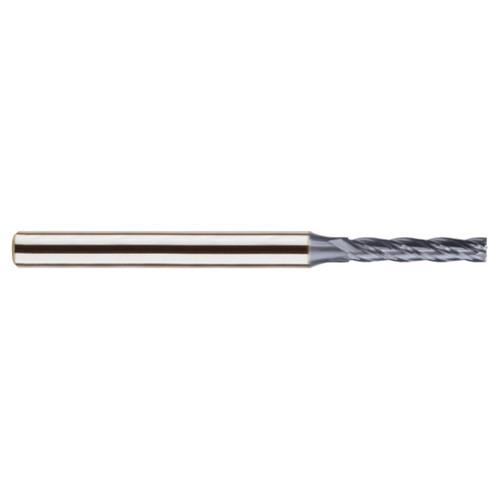

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Diameter (Decimal Inch):
0.6299"
Diameter (Inch):
17/27"
Diameter (mm):
16.00mm
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (Inch):
17/27"
Shank Diameter (mm):
16.00mm
Length of Cut (Decimal Inch):
1.9685"
Length of Cut (Inch):
1-31/32"
Length of Cut (mm):
50.00mm
Overall Length (Decimal Inch):
4.3307"
Overall Length (Inch):
4-1/3"
Overall Length (mm):
110.00mm
Shank Style:
Plain
Helix Angle:
45 Degree
Finish/Coating:
AlCrN
Number of Flutes:
6
Material:
Carbide
Cut Type:
Center Cut
Cutting Direction:
Right
interval quantity:
1
