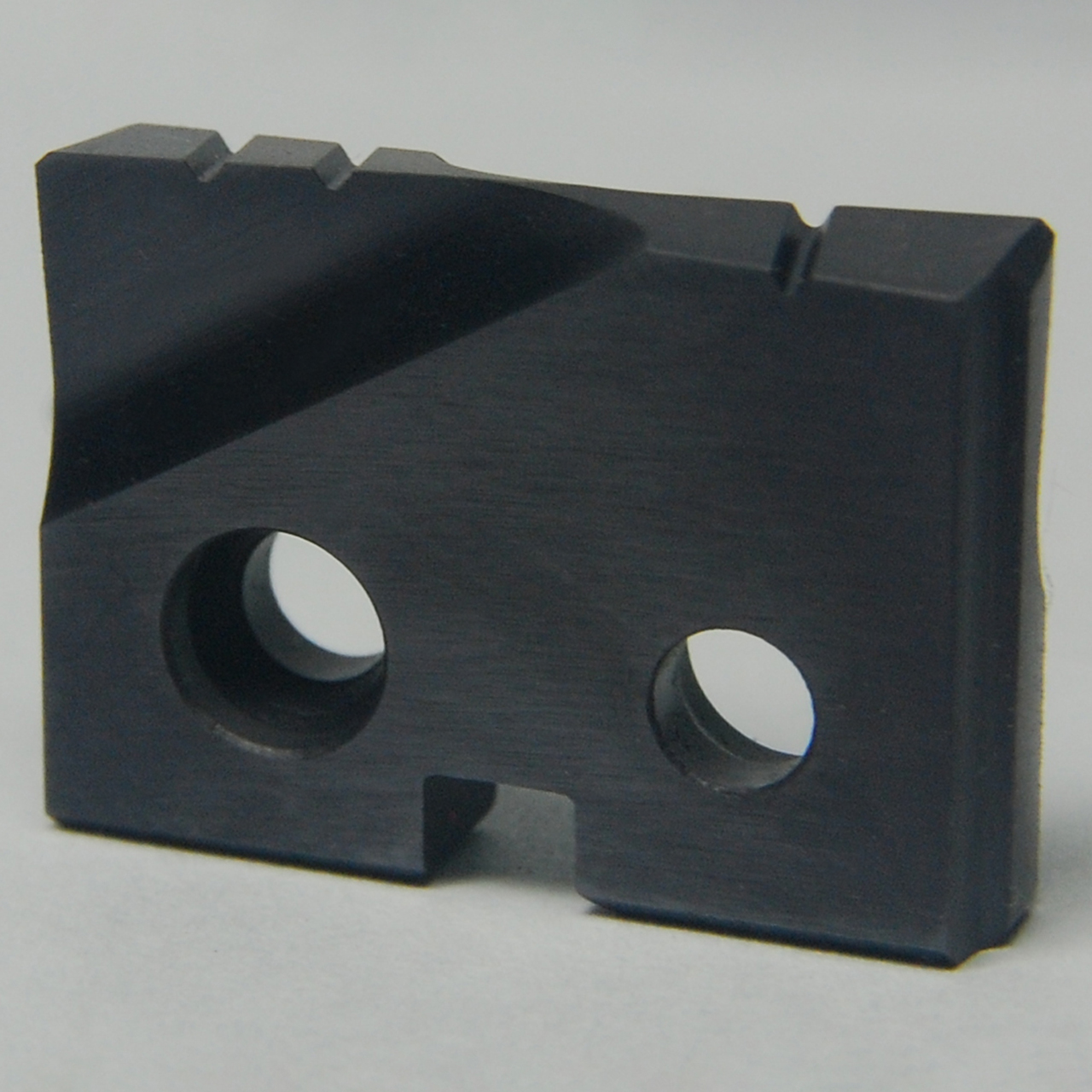

| Manufacturer Part Number | SF05032 |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (Inch) | 1/2" |
| Diameter (mm) | 12.70mm |
| Thickness (Decimal Inch) | 0.0938" |
| Thickness (Inch) | 3/32" |
| Thickness (mm) | 2.38mm |
| Insert Height (Decimal Inch) | 0.3620" |
| Insert Height (Inch) | 21/58" |
| Insert Height (mm) | 9.19mm |
| Series | SF05 |
| Point Angle (Degree) | 180 Degree |
| Holder Type | Series Z |
| Grade | T15 |
| Trade Name | YG Spade Drill SF Point Flat Bottom |
| Application | P,K |
| Coating | TiN |
| Material | Super Cobalt |
| Product Type | Flat Bottom Spade Drill Insert |
