Product Specifications
| EDP Number | SF05038 |
| Diameter (Decimal Inch) | 1.2800" |
| Diameter (Inch) | 1-9/32" |
| Diameter (mm) | 32.54mm |
| Thickness (Decimal Inch) | 0.1250" |
| Thickness (Inch) | 1/8" |
| Thickness (mm) | 3.18mm |
| Insert Height (Decimal Inch) | 0.4380" |
| Insert Height (Inch) | 7/16" |
| Insert Height (mm) | 11.13mm |
| Series | SF05 |
| Point Angle (Degree) | 180 Degree |
| Holder Type | Series 0 |
| Grade | T15 |
| Trade Name | YG Spade Drill SF Point Flat Bottom |
| Application | P,K |
| Coating | TiN |
| Material | Super Cobalt |

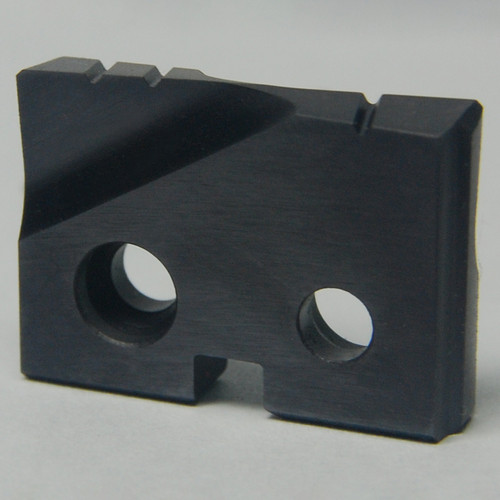

| Product Type | Flat Bottom Spade Drill Insert |
