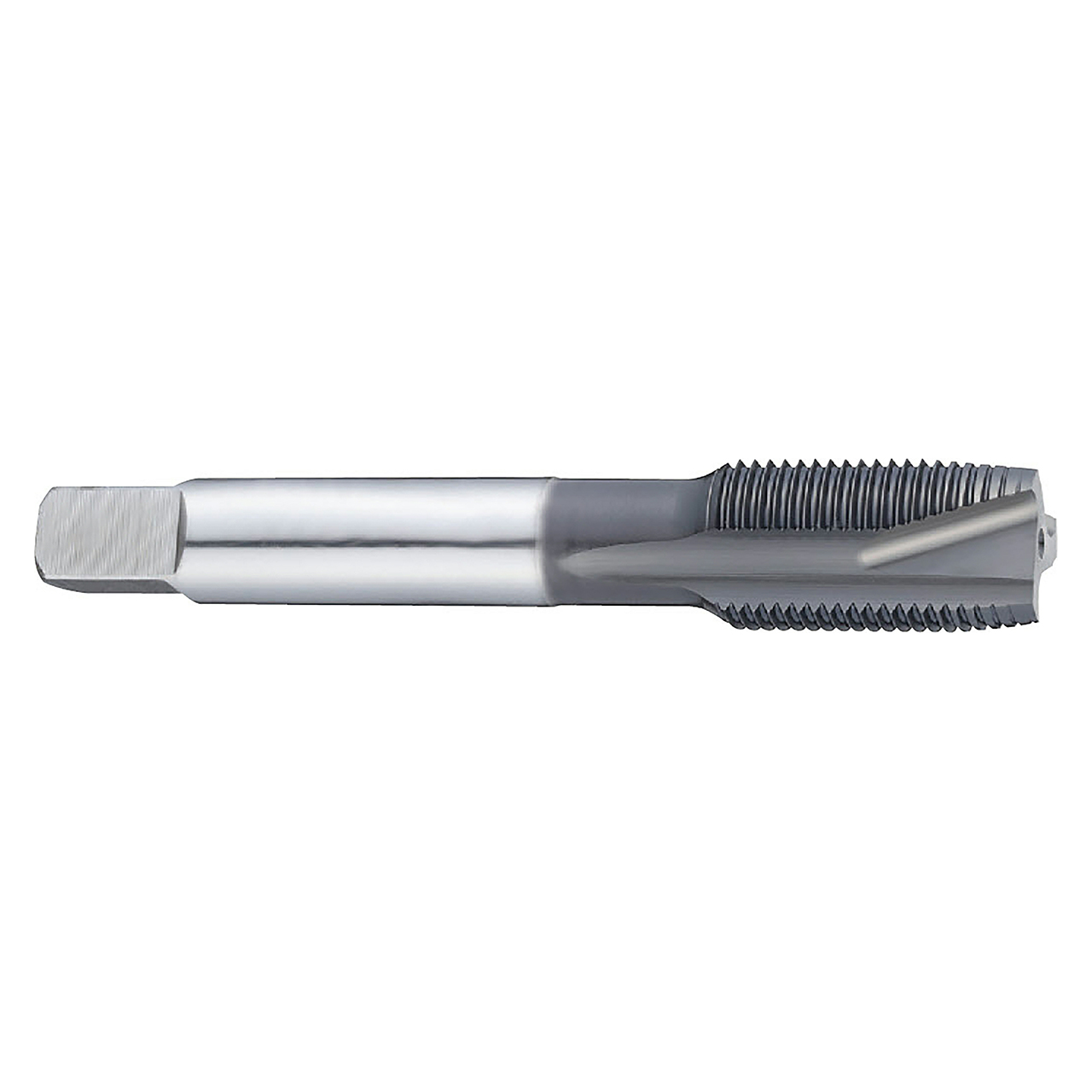

Product Specifications
| Diameter (Decimal Inch) | SI622 |
| Diameter (Decimal Inch) | 0.6374" |
| Diameter (mm) | 16.19mm |
| Overall Length (Decimal Inch) | 3.8100" |
| Overall Length (mm) | 96.77mm |
| Thread Length (Decimal Inch) | 0.7220" |
| Thread Length (mm) | 18.34" |
| Square Length (Decimal Inch) | 0.7220" |
| Square Length (mm) | 18.34" |
| Shank Diameter (Decimal Inch) | 0.4800" |
| Shank Diameter (mm) | 12.19mm |
| Square Size (Decimal Inch) | 0.3600" |
| Square Size (mm) | 9.14mm |
| Neck Diameter (Decimal Inch) | 0.4680" |
| Neck Diameter (mm) | 11.89mm |
| Drill Size (Decimal Inch) | 0.5787" |
| Drill Size (mm) | 14.70mm |
| Useable Length (Decimal Inch) | 1.8100" |
| Useable Length (mm) | 45.97mm |
| Length/Diameter | 2.5xD |
| Coolant Through | No |
| Tap Type | SPFL |
| Number Of Flutes | 3 |
| Size | 9/16 |
| Pitch | 18 TPI |
| Thread Series | UNF |
| Thread Class | 2B |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Finish | Hardslick |
| Material | HSSE-V24 |
| Blank Standard | 322 |
| Product Type | Spiral Point Tap |
