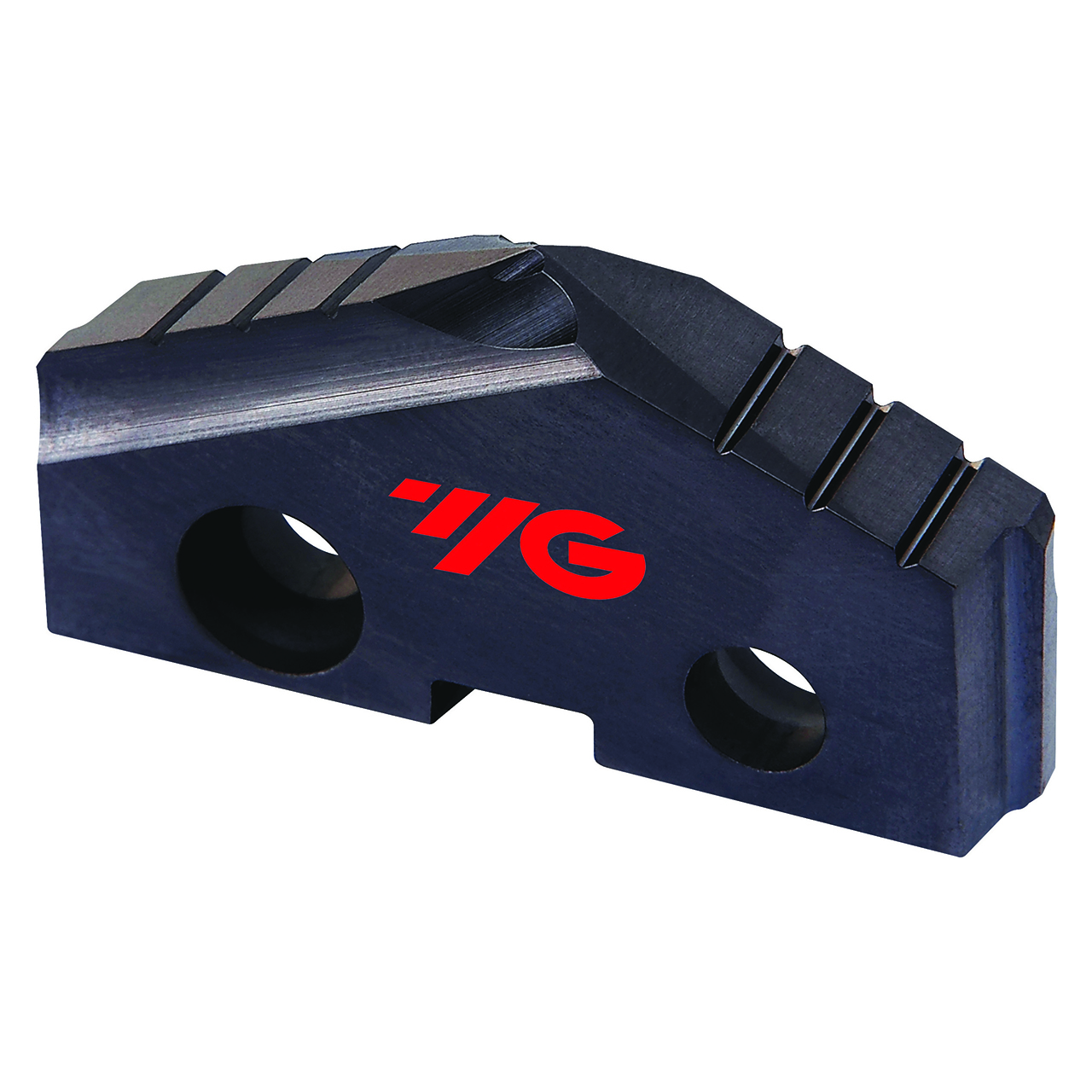

| Manufacturer Part Number | SM08425 |
| Diameter (Decimal Inch) | 2.3100" |
| Diameter (Inch) | 2-5/16" |
| Diameter (mm) | 58.74mm |
| Thickness (Decimal Inch) | 0.3125" |
| Thickness (Inch) | 5/16" |
| Thickness (mm) | 7.94mm |
| Insert Height (Decimal Inch) | 0.9370" |
| Insert Height (Inch) | 15/16" |
| Insert Height (mm) | 23.80mm |
| Series | SM08 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series 4 |
| Grade | T15 |
| Trade Name | YG Spade Drill SM Point Super Cobalt |
| Application | P,K |
| Coating | TiAlN |
| Material | Super Cobalt |
| Product Type | Spade Drill Insert |
