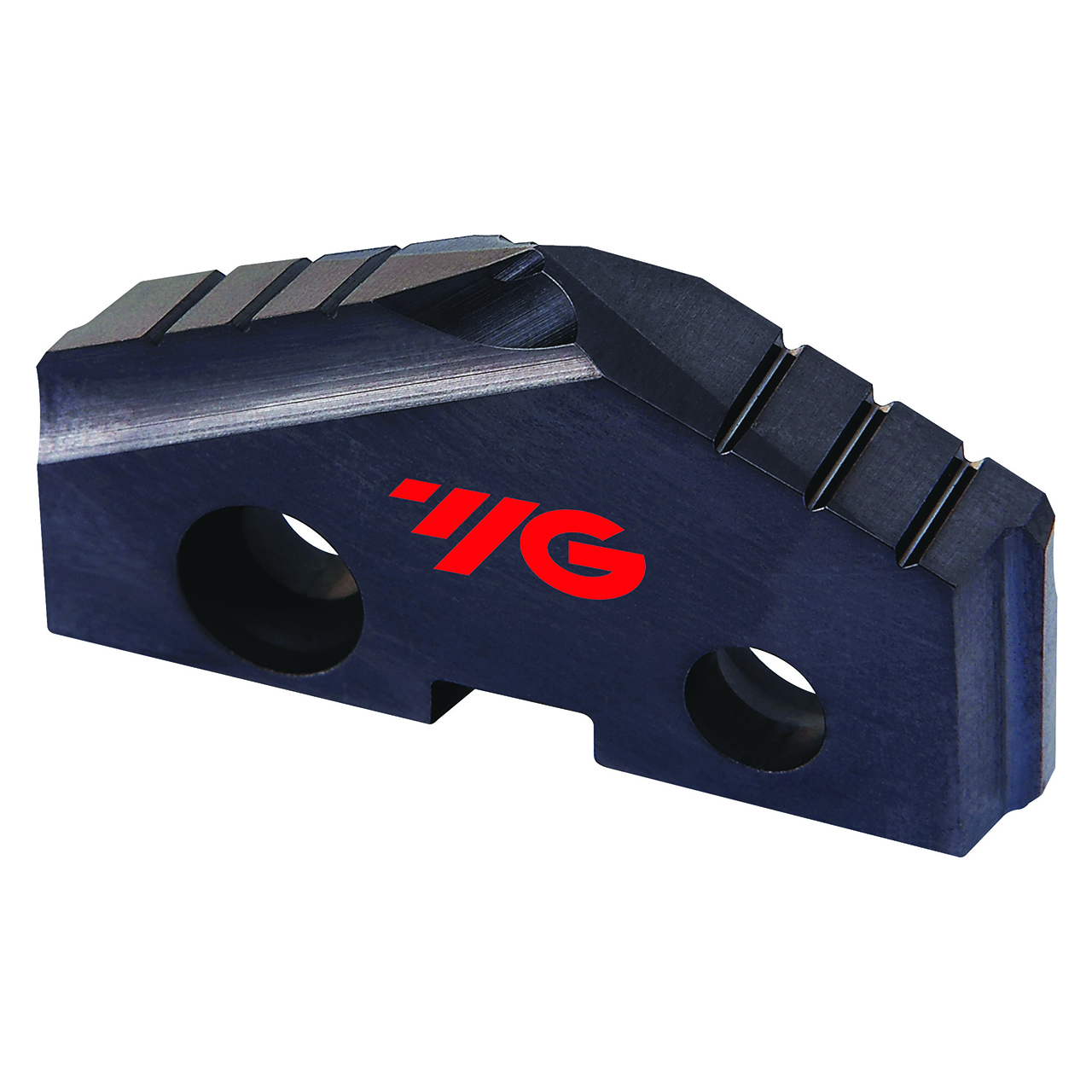

YG1 SM08801 | 4.0200" Diameter x 0.4375" Thickness 144 Degree Included Angle TiAlN Coated SM08 Series Spade Drill Insert

$237.65 $160.42
(You save $77.23)
Brand:
YG1
Series:
SM08
Diameter (mm):
102.00mm
Series Code/Seat Size:
Series 7-8
Material:
Super Cobalt
Finish/Coating:
TiAlN
Thickness (Inch):
7/16"
Thickness (Decimal Inch):
0.4375"
Thickness (mm):
11.11mm
Included Angle:
144 Degree
interval quantity:
1
SKU:
23015525
UPC:
Weight:
0.52 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
EDP NumberSM08801
Diameter (Decimal Inch)4.0200"
Diameter (Inch)4-1/64"
Diameter (mm)102.00mm
Thickness (Decimal Inch)0.4375"
Thickness (Inch)7/16"
Thickness (mm)11.11mm
Insert Height (Decimal Inch)1.2500"
Insert Height (Inch)1-1/4"
Insert Height (mm)31.75mm
SeriesSM08
Point Angle (Degree)144 Degree
Holder TypeSeries 7-8
GradeT15
Trade NameYG Spade Drill SM Point Super Cobalt
ApplicationP,K
CoatingTiAlN
MaterialSuper Cobalt
Product TypeSpade Drill Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
