| Manufacturer Part Number | SM08Y03 |
| Diameter (Decimal Inch) | 0.3900" |
| Diameter (Inch) | 22/57" |
| Diameter (mm) | 9.80mm |
| Thickness (Decimal Inch) | 0.0945" |
| Thickness (Inch) | 3/32" |
| Thickness (mm) | 2.40mm |
| Insert Height (Decimal Inch) | 0.3610" |
| Insert Height (Inch) | 13/36" |
| Insert Height (mm) | 9.17mm |
| Series | SM08 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series Y |
| Grade | T15 |
| Trade Name | YG Spade Drill SM Point Super Cobalt |
| Application | P,K |
| Coating | TiAlN |
| Material | Super Cobalt |

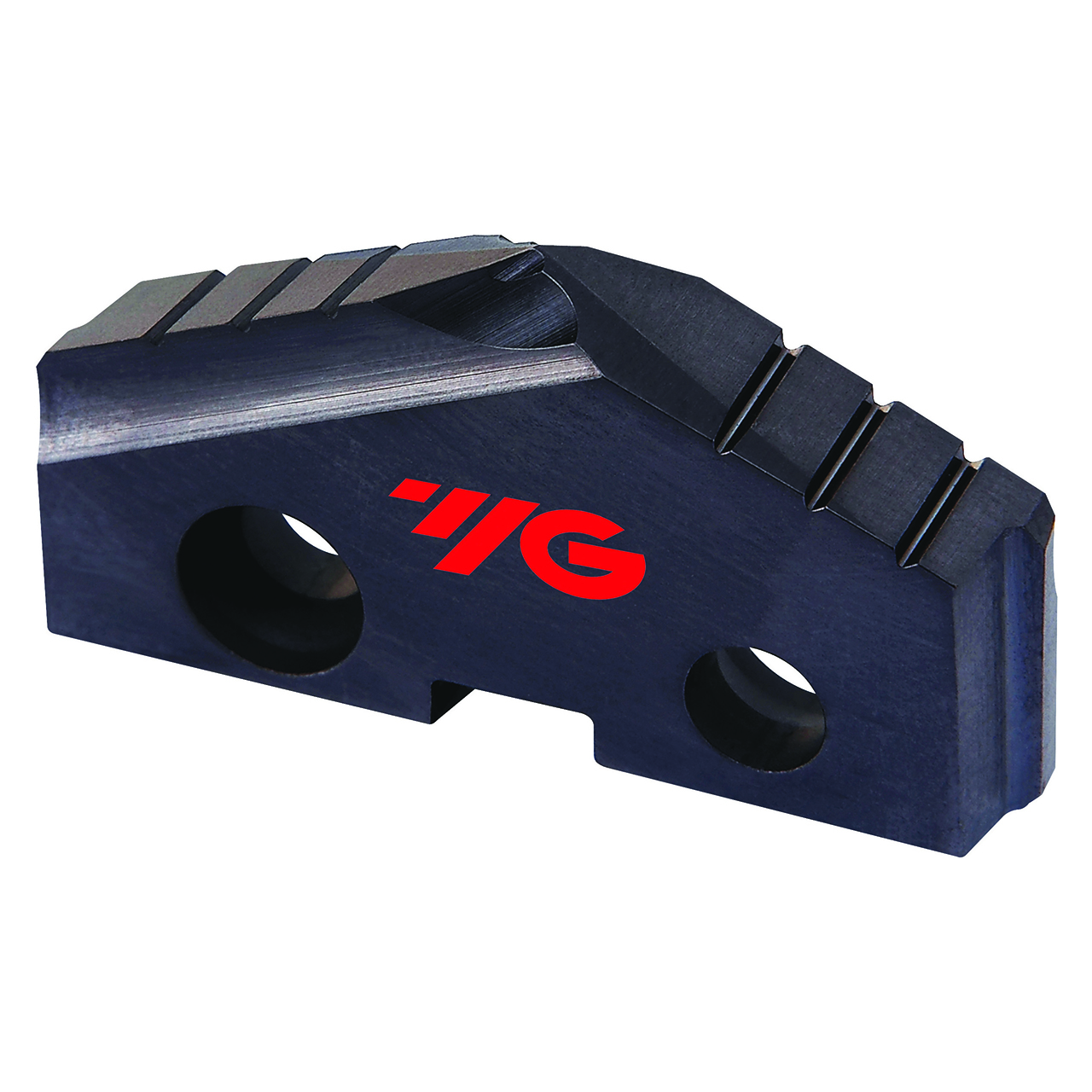

| Product Type | Spade Drill Insert |
