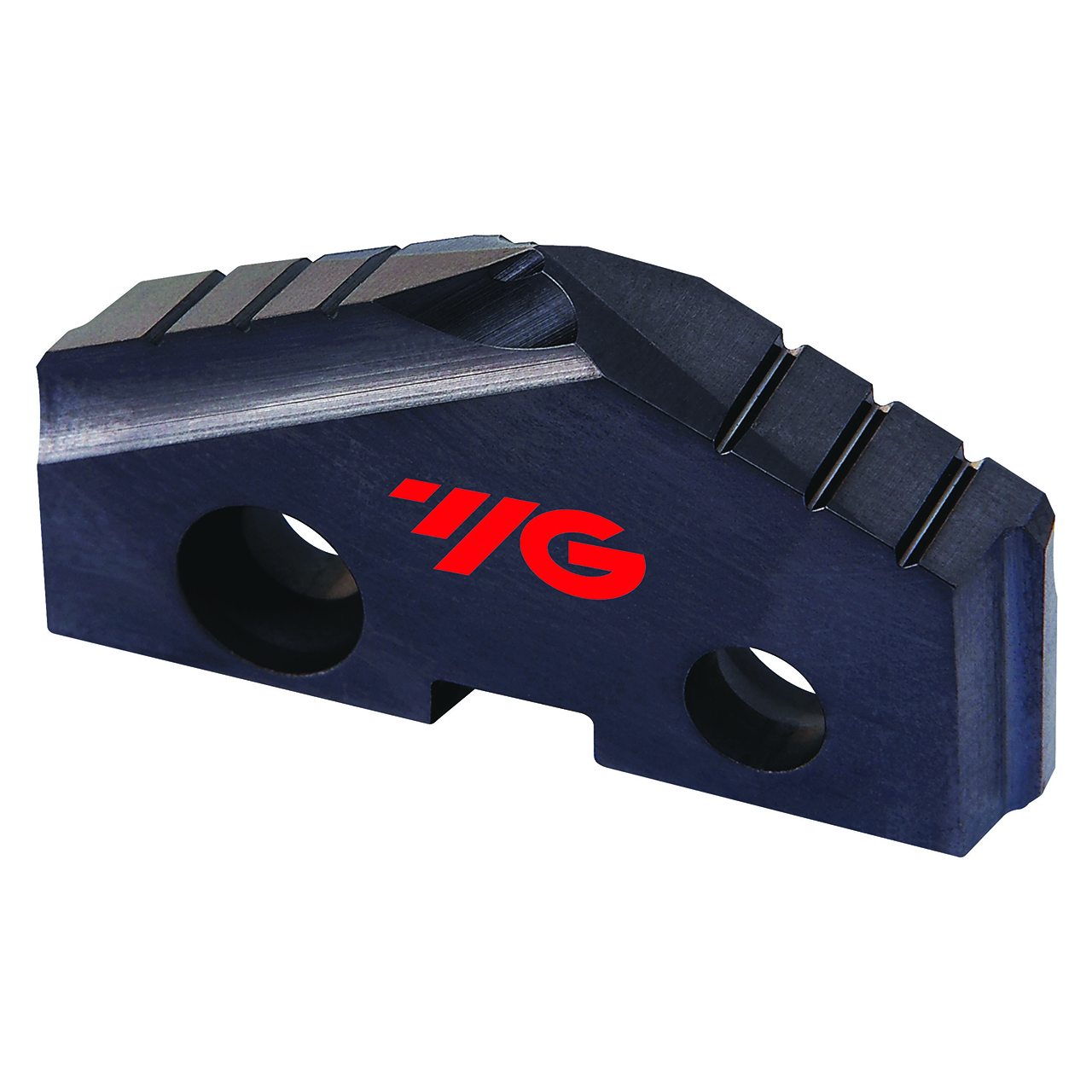

YG1 SM08Z01 | 0.4400" Diameter x 0.0938" Thickness 132 Degree Included Angle TiAlN Coated SM08 Series Spade Drill Insert

$35.44
Brand:
YG1
Series:
SM08
Diameter (mm):
11.11mm
Series Code/Seat Size:
Series Z
Material:
Super Cobalt
Finish/Coating:
TiAlN
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0938"
Thickness (mm):
2.38mm
Included Angle:
132 Degree"interval quantity=2
SKU:
23015551
UPC:
Weight:
0.01 LBS
Minimum Purchase:
2 units
Shipping:
Calculated at Checkout

Product Specifications
EDP NumberSM08Z01
Diameter (Decimal Inch)0.4400"
Diameter (Inch)7/16"
Diameter (mm)11.11mm
Thickness (Decimal Inch)0.0938"
Thickness (Inch)3/32"
Thickness (mm)2.38mm
Insert Height (Decimal Inch)0.3620"
Insert Height (Inch)21/58"
Insert Height (mm)9.19mm
SeriesSM08
Point Angle (Degree)132 Degree
Holder TypeSeries Z
GradeT15
Trade NameYG Spade Drill SM Point Super Cobalt
ApplicationP,K
CoatingTiAlN
MaterialSuper Cobalt
Product TypeSpade Drill Insert
