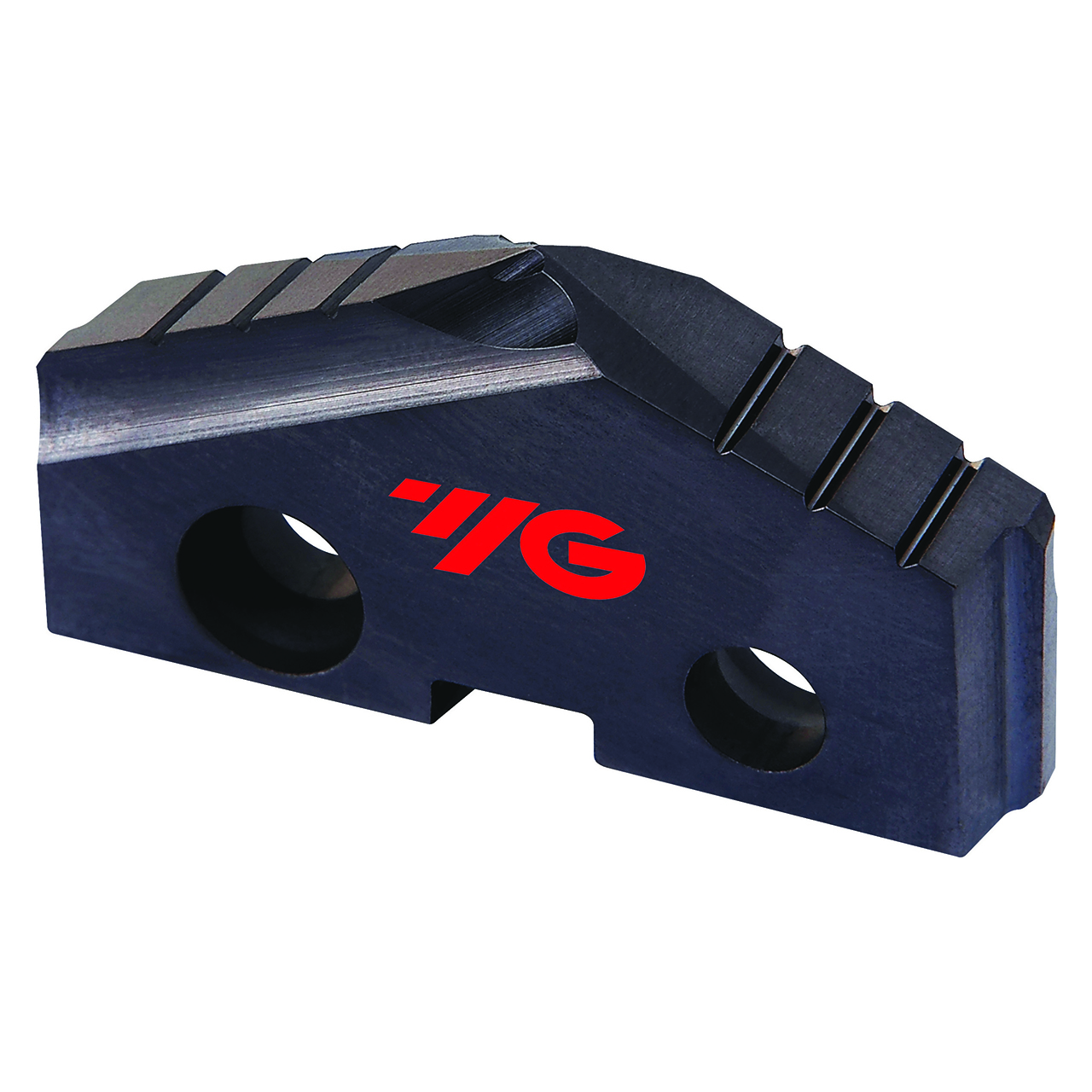

| Manufacturer Part Number | SM08Z04 |
| Diameter (Decimal Inch) | 0.4700" |
| Diameter (Inch) | 15/32" |
| Diameter (mm) | 11.91mm |
| Thickness (Decimal Inch) | 0.0938" |
| Thickness (Inch) | 3/32" |
| Thickness (mm) | 2.38mm |
| Insert Height (Decimal Inch) | 0.3620" |
| Insert Height (Inch) | 21/58" |
| Insert Height (mm) | 9.19mm |
| Series | SM08 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series Z |
| Grade | T15 |
| Trade Name | YG Spade Drill SM Point Super Cobalt |
| Application | P,K |
| Coating | TiAlN |
| Material | Super Cobalt |
| Product Type | Spade Drill Insert |
