| Manufacturer Part Number | SM28003 |
| Diameter (Decimal Inch) | 0.5300" |
| Diameter (Inch) | 17/32" |
| Diameter (mm) | 13.49mm |
| Thickness (Decimal Inch) | 0.1250" |
| Thickness (Inch) | 1/8" |
| Thickness (mm) | 3.18mm |
| Insert Height (Decimal Inch) | 0.4380" |
| Insert Height (Inch) | 7/16" |
| Insert Height (mm) | 11.13mm |
| Series | SM28 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series 0 |
| Grade | (C5)P40 |
| Trade Name | YG Spade Drill SM Point (C5) P40 Carbide |
| Application | P |
| Coating | TiAlN |
| Material | Carbide |

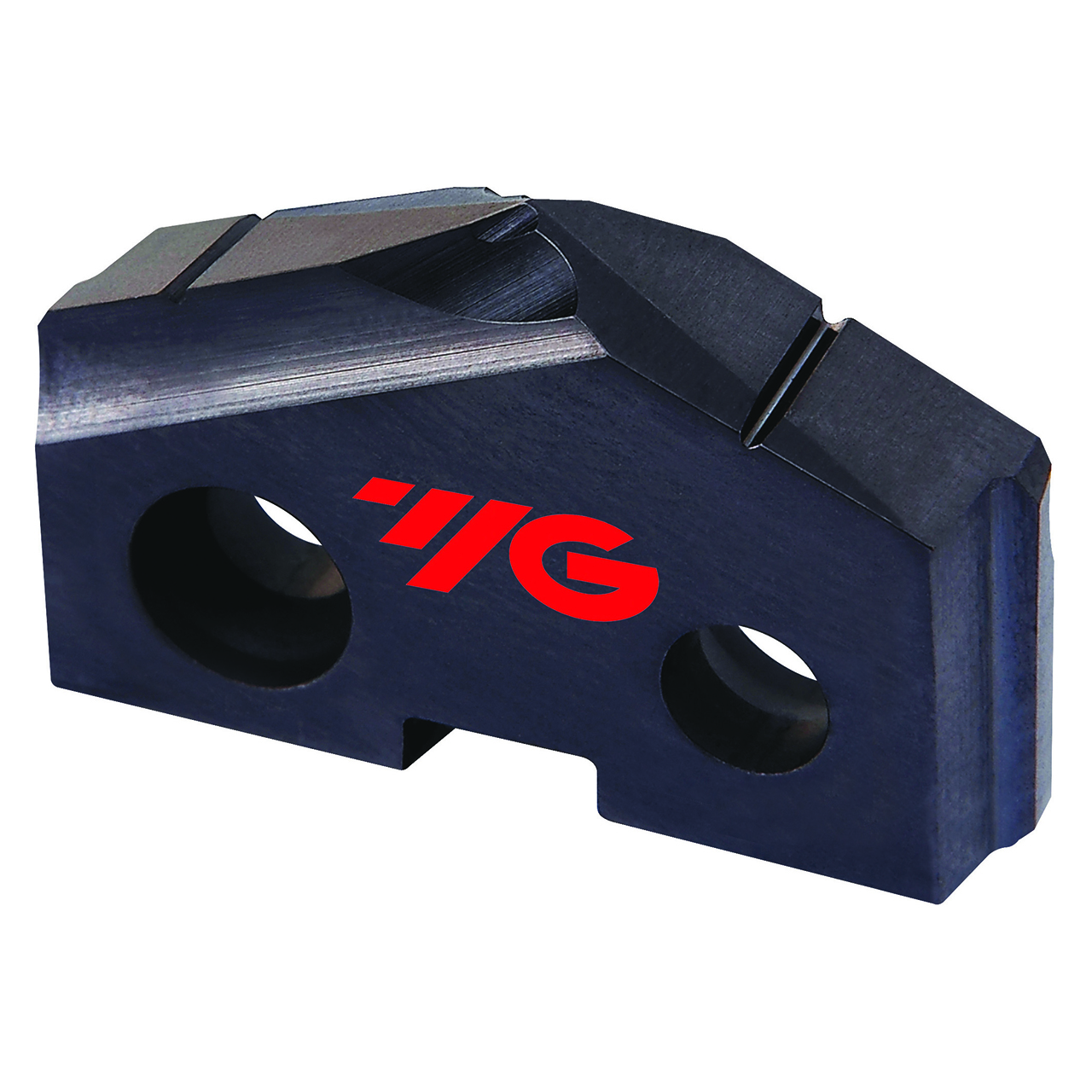

| Product Type | Spade Drill Insert |
