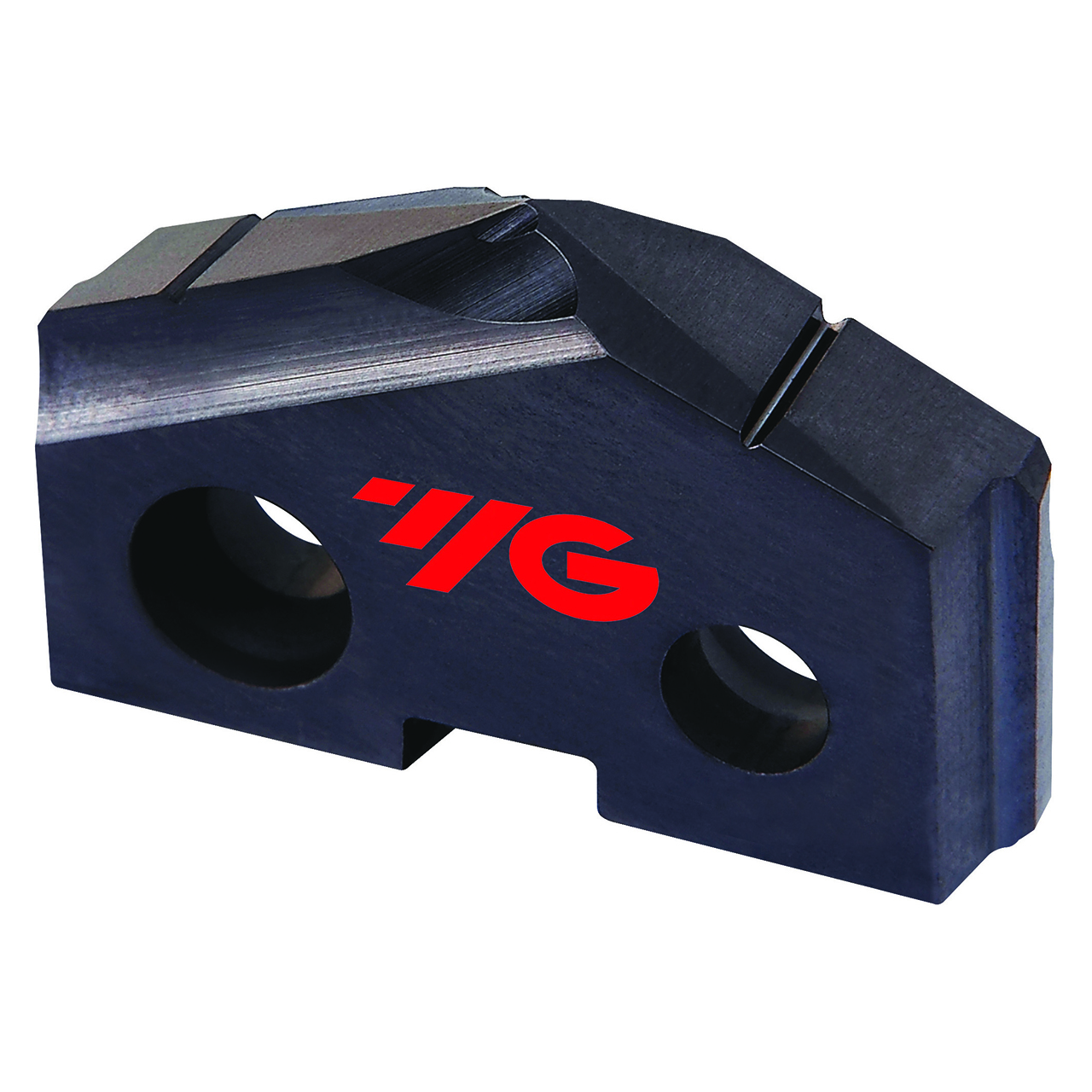

| Manufacturer Part Number | SM28108 |
| Diameter (Decimal Inch) | 0.7700" |
| Diameter (Inch) | 49/64" |
| Diameter (mm) | 19.45mm |
| Thickness (Decimal Inch) | 0.1563" |
| Thickness (Inch) | 5/32" |
| Thickness (mm) | 3.97mm |
| Insert Height (Decimal Inch) | 0.5620" |
| Insert Height (Inch) | 9/16" |
| Insert Height (mm) | 14.27mm |
| Series | SM28 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series 1 |
| Grade | (C5)P40 |
| Trade Name | YG Spade Drill SM Point (C5) P40 Carbide |
| Application | P |
| Coating | TiAlN |
| Material | Carbide |

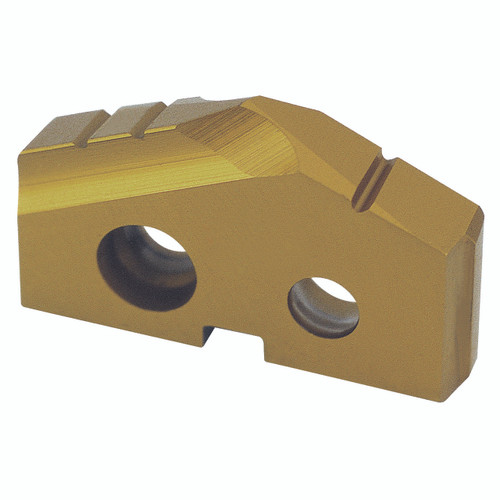

| Product Type | Spade Drill Insert |
