| Manufacturer Part Number | SM28118 |
| Diameter (Decimal Inch) | 0.9100" |
| Diameter (Inch) | 48/53" |
| Diameter (mm) | 23.00mm |
| Thickness (Decimal Inch) | 0.1575" |
| Thickness (Inch) | 5/32" |
| Thickness (mm) | 4.00mm |
| Insert Height (Decimal Inch) | 0.5620" |
| Insert Height (Inch) | 9/16" |
| Insert Height (mm) | 14.27mm |
| Series | SM28 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series 1 |
| Grade | (C5)P40 |
| Trade Name | YG Spade Drill SM Point (C5) P40 Carbide |
| Application | P |
| Coating | TiAlN |
| Material | Carbide |

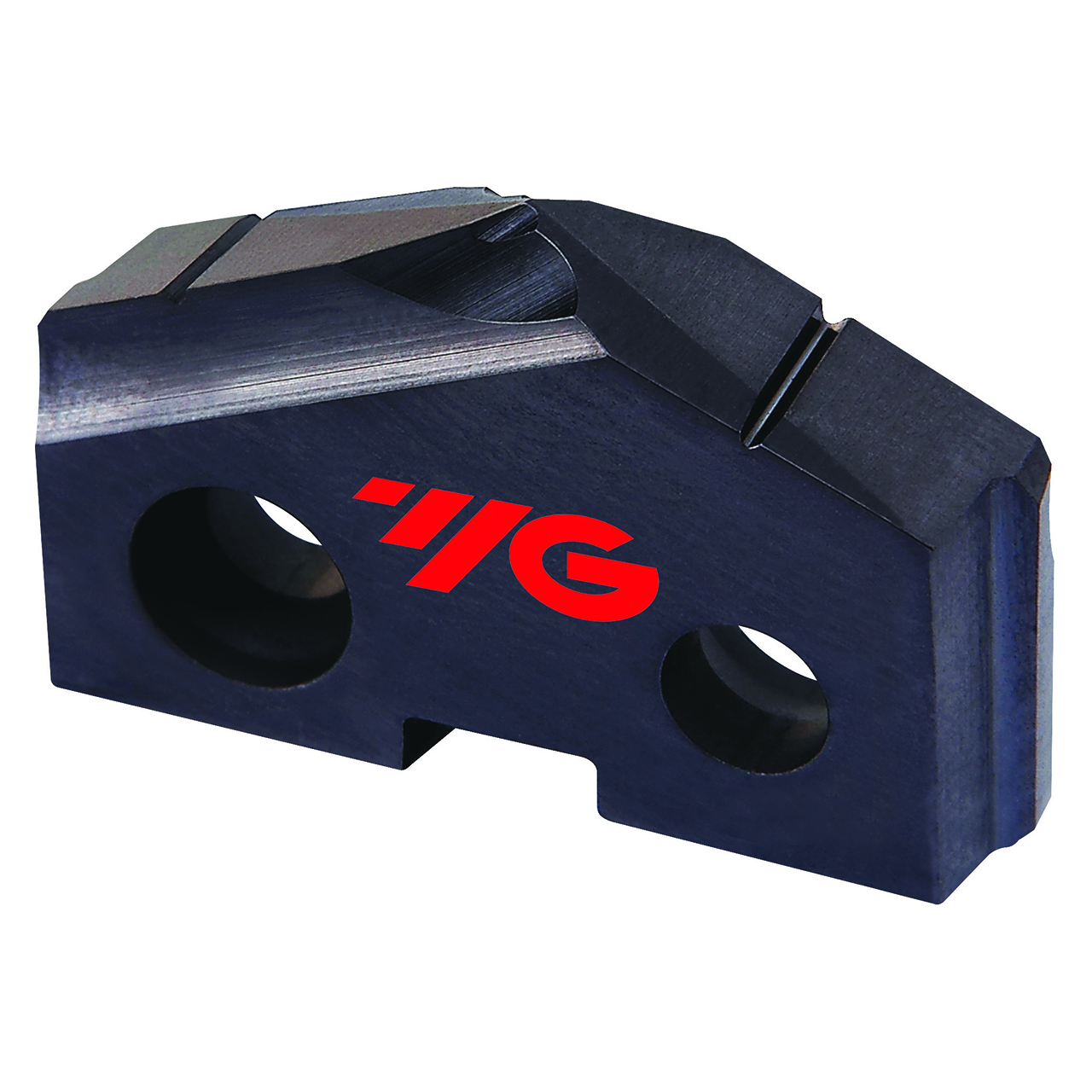

| Product Type | Spade Drill Insert |
