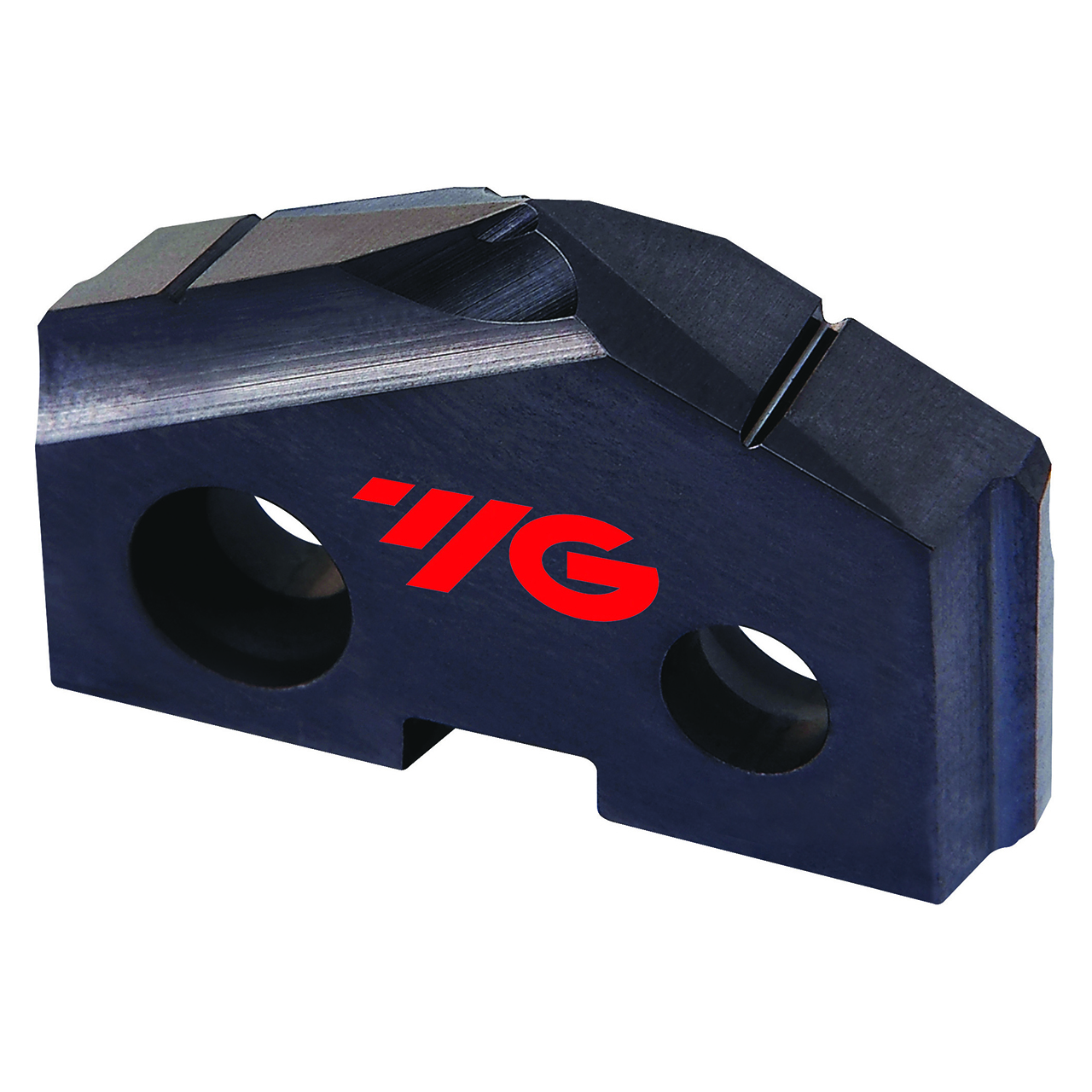

| Manufacturer Part Number | SM28Y08 |
| Diameter (Decimal Inch) | 0.4100" |
| Diameter (Inch) | 31/75" |
| Diameter (mm) | 10.50mm |
| Thickness (Decimal Inch) | 0.0945" |
| Thickness (Inch) | 3/32" |
| Thickness (mm) | 2.40mm |
| Insert Height (Decimal Inch) | 0.3610" |
| Insert Height (Inch) | 13/36" |
| Insert Height (mm) | 9.17mm |
| Series | SM28 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series Y |
| Grade | (C5)P40 |
| Trade Name | YG Spade Drill SM Point (C5) P40 Carbide |
| Application | P |
| Coating | TiAlN |
| Material | Carbide |
| Product Type | Spade Drill Insert |
