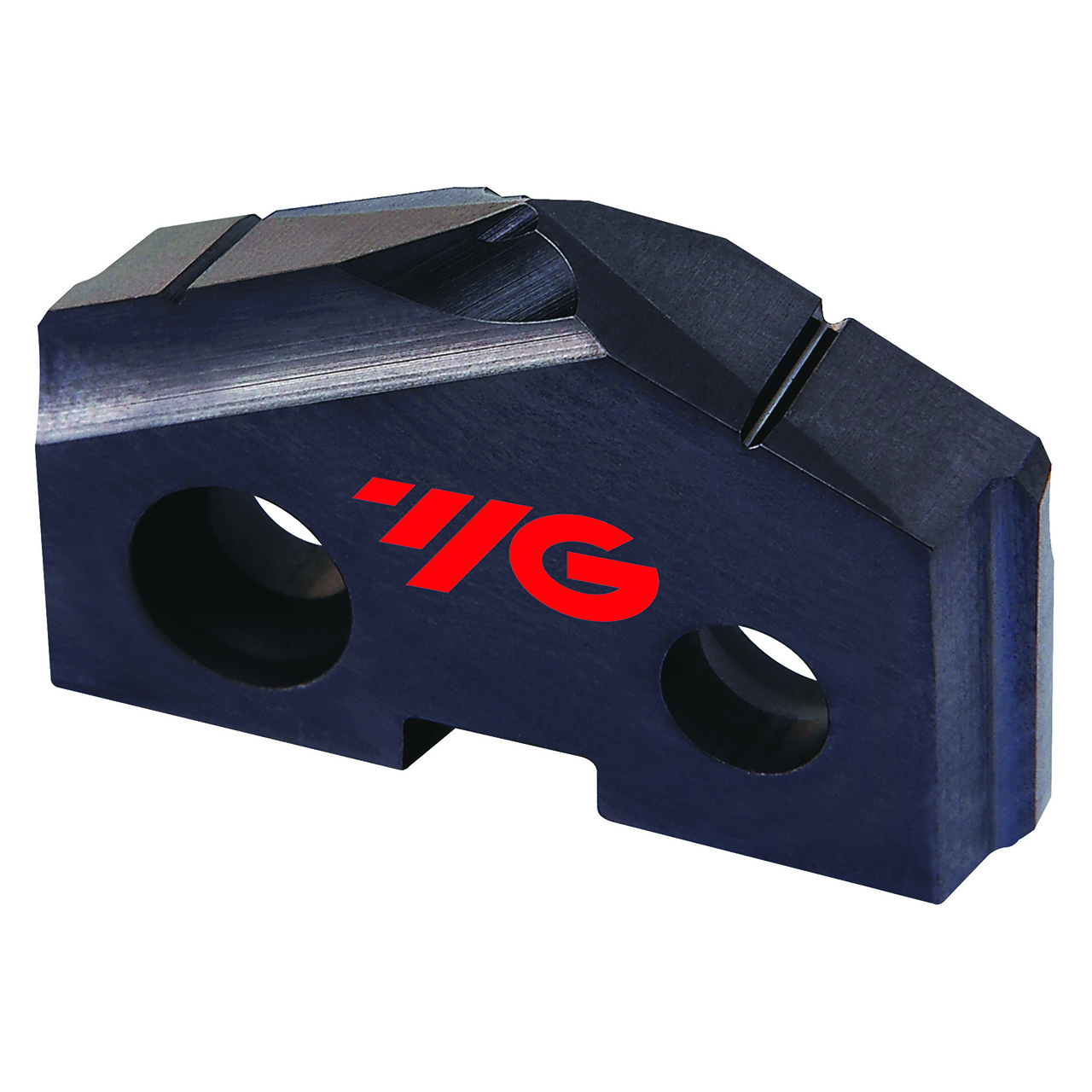

| Manufacturer Part Number | SM28Z02 |
| Diameter (Decimal Inch) | 0.4500" |
| Diameter (Inch) | 24/53" |
| Diameter (mm) | 11.50mm |
| Thickness (Decimal Inch) | 0.0945" |
| Thickness (Inch) | 3/32" |
| Thickness (mm) | 2.40mm |
| Insert Height (Decimal Inch) | 0.3620" |
| Insert Height (Inch) | 21/58" |
| Insert Height (mm) | 9.19mm |
| Series | SM28 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series Z |
| Grade | (C5)P40 |
| Trade Name | YG Spade Drill SM Point (C5) P40 Carbide |
| Application | P |
| Coating | TiAlN |
| Material | Carbide |
| Product Type | Spade Drill Insert |
