| Manufacturer Part Number | ST182 |
| Thread Size | #4 |
| Thread Size (Decimal Inch) | 0.112" |
| Thread Size (mm) | 2.84mm |
| Threads per Inch (TPI) | 48 |
| Thread Series | UNF |
| Pitch Limit | 2B |
| Chamfer Type | Bottoming |
| Chamfer Length | 1.5P-2P |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (mm) | 50.80mm |
| Thread Length (Decimal Inch) | 0.413" |
| Thread Length (mm) | 10.49mm |
| Square Length (Decimal Inch) | 0.190" |
| Square Length (mm) | 4.83mm |
| Shank Diameter (Decimal Inch) | 0.141" |
| Shank Diameter (mm) | 3.58mm |
| Square Size (Decimal Inch) | 0.110" |
| Square Size (mm) | 2.79mm |
| Neck Diameter (Decimal Inch) | 0.094" |
| Neck Diameter (mm) | 2.39mm |
| Drill Size (Decimal Inch) | 0.118" |
| Drill Size (mm) | 3.00mm |
| Connection Size (Decimal Inch) | 0.141" x 0.110" |
| Connection Size (mm) | 3.58 x 2.79mm |
| Usable Length (Decimal Inch) | 0.690" |
| Usable Length (mm) | 17.53mm |
| Length / Diameter | 3.0 x D |
| Number of Flutes | 3 |
| Helix Angle (Degree) | 40 Degree |
| Coating | Hardslick |
| Material | HSS-E |
| Blank Standard | 322 |
| Series | ST |

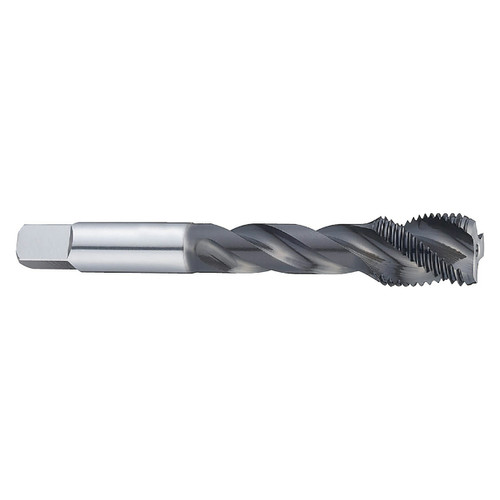

| Product Type | Spiral Flute Tap |
