| Manufacturer Part Number | ST322 |
| Thread Size | #10 |
| Thread Size (Decimal Inch) | 0.190" |
| Thread Size (mm) | 4.83mm |
| Threads per Inch (TPI) | 24 |
| Thread Series | UNC |
| Pitch Limit | 2B |
| Chamfer Type | Bottoming |
| Chamfer Length | 1.5P-2P |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (mm) | 63.50mm |
| Thread Length (Decimal Inch) | 0.433" |
| Thread Length (mm) | 11.00mm |
| Square Length (Decimal Inch) | 0.310" |
| Square Length (mm) | 7.87mm |
| Shank Diameter (Decimal Inch) | 0.255" |
| Shank Diameter (mm) | 6.48mm |
| Square Size (Decimal Inch) | 0.191" |
| Square Size (mm) | 4.85mm |
| Neck Diameter (Decimal Inch) | 0.180" |
| Neck Diameter (mm) | 4.57mm |
| Drill Size (Decimal Inch) | 0.201" |
| Drill Size (mm) | 5.10mm |
| Connection Size (Decimal Inch) | 0.255" x 0.191" |
| Connection Size (mm) | 6.48 x 4.85mm |
| Usable Length (Decimal Inch) | 1.000" |
| Usable Length (mm) | 25.40mm |
| Length / Diameter | 2.5 x D |
| Number of Flutes | 3 |
| Helix Angle (Degree) | 40 Degree |
| Coating | Hardslick |
| Material | HSS-E |
| Blank Standard | 322 |
| Series | ST |

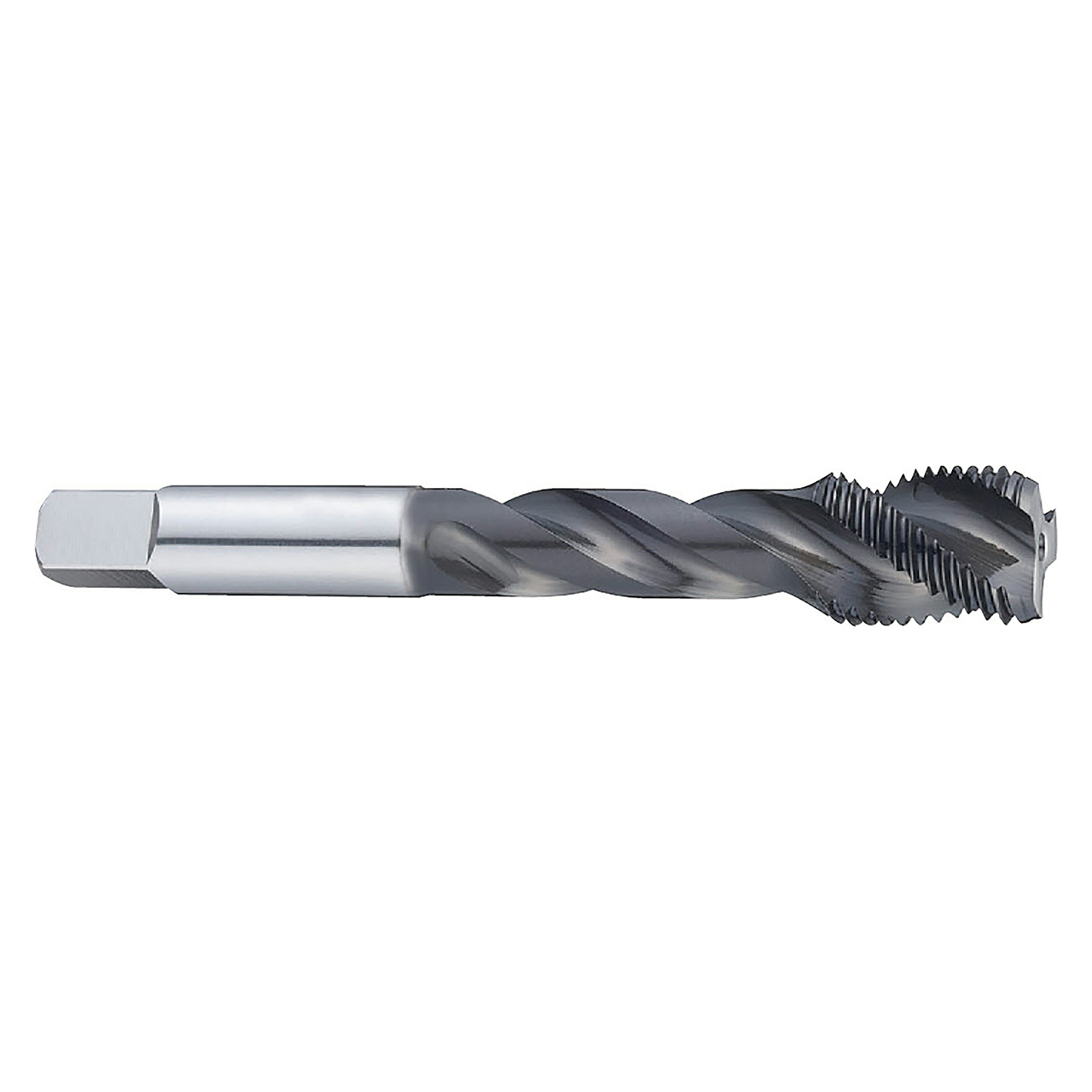

| Product Type | Spiral Flute Tap |
