Product Specifications
| Diameter (Decimal Inch) | ST402 |
| Diameter (Decimal Inch) | 0.3177" |
| Diameter (mm) | 8.07mm |
| Overall Length (Decimal Inch) | 2.7200" |
| Overall Length (mm) | 69.09mm |
| Thread Length (Decimal Inch) | 0.4720" |
| Thread Length (mm) | 11.99" |
| Square Length (Decimal Inch) | 0.4720" |
| Square Length (mm) | 11.99" |
| Shank Diameter (Decimal Inch) | 0.3180" |
| Shank Diameter (mm) | 8.08mm |
| Square Size (Decimal Inch) | 0.2380" |
| Square Size (mm) | 6.05mm |
| Neck Diameter (Decimal Inch) | 0.2340" |
| Neck Diameter (mm) | 5.94mm |
| Drill Size (Decimal Inch) | 0.2638" |
| Drill Size (mm) | 6.70mm |
| Useable Length (Decimal Inch) | 1.1300" |
| Useable Length (mm) | 28.70mm |
| Length/Diameter | 2.5xD |
| Coolant Through | No |
| Tap Type | SPFL |
| Number Of Flutes | 3 |
| Size | 1/4 |
| Pitch | 20 TPI |
| Thread Series | UNC |
| Thread Class | 2B |
| Chamfer Type | Bottoming |
| Chamfer Length | 1.5P-2P |
| Finish | Hardslick |
| Material | HSSE-V39 |
| Blank Standard | 322 |
| Helix Angle | 40 Degree |

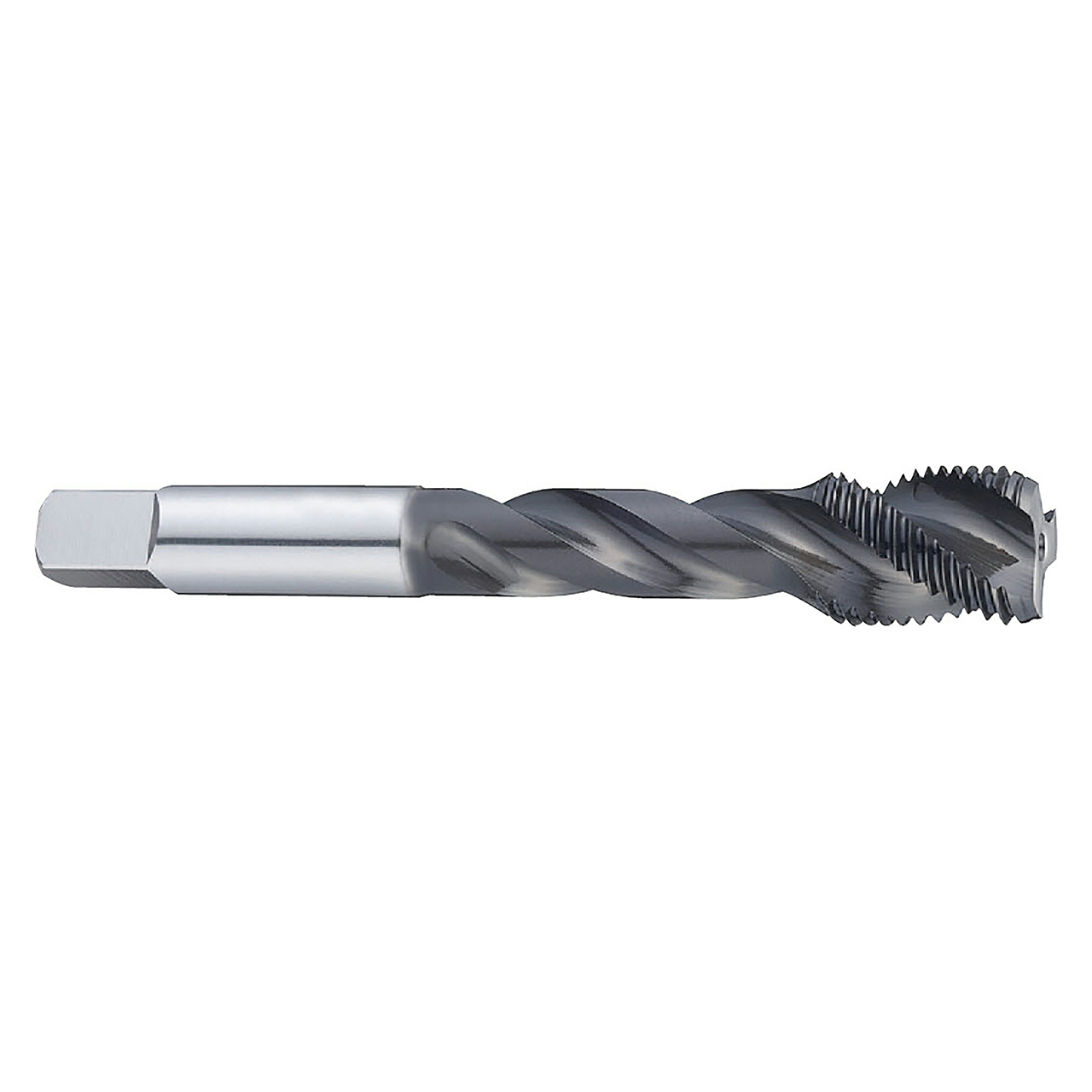

| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (mm):
8.07mm
Number of Flutes:
3
Chamfer:
Bottoming
Material:
HSSE-V39
Finish/Coating:
Hardslick
Through Coolant:
No
