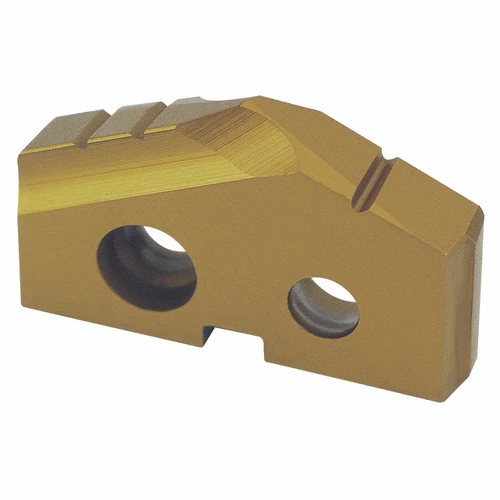

YG1 SV520334 | 3.5300" Diameter x 0.4375" Thickness 144 Degree Included Angle Hardslick Coated SV520 Series Spade Drill Insert

$273.34 $185.87
(You save $87.47)
Brand:
YG1
Series:
SV520
Diameter (mm):
89.69mm
Series Code/Seat Size:
7
Material:
Premium Cobalt
Finish/Coating:
Hardslick
Thickness (Inch):
7/16"
Thickness (Decimal Inch):
0.4375"
Thickness (mm):
11.10mm
Included Angle:
144 Degree
interval quantity:
1
SKU:
23016126
UPC:
Weight:
0.45 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
EDP NumberSV520334
Diameter (Decimal Inch)3.5300"
Diameter (Inch)3-17/32"
Diameter (mm)89.69mm
Thickness (Decimal Inch)0.4375"
Thickness (Inch)7/16"
Thickness (mm)11.10mm
Insert Height (Decimal Inch)1.2500"
Insert Height (Inch)1-1/4"
Insert Height (mm)31.80mm
SeriesSV520
Point Angle (Degree)144 Degree
Holder Type7
GradeM48
Trade NameSV Point
ApplicationP,K
CoatingHardslick
MaterialPremium Cobalt
Product TypeSpade Drill Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
