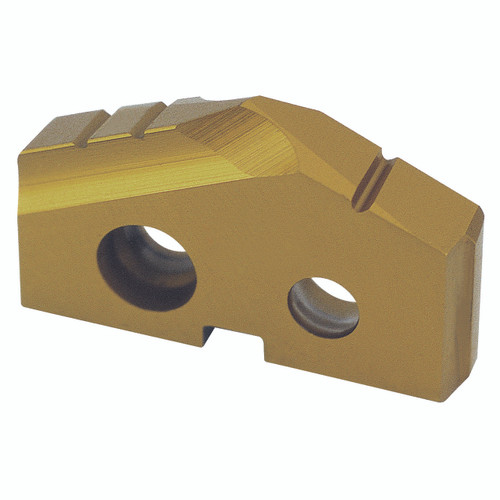

YG1 SV570720 | 2.8300" Diameter x 0.4375" Thickness 144 Degree Included Angle Hardslick Coated SV570 Series Spade Drill Insert

$186.86 $126.13
(You save $60.73)
Brand:
YG1
Series:
SV570
Diameter (mm):
72.00mm
Series Code/Seat Size:
5
Material:
Premium Cobalt
Finish/Coating:
Hardslick
Thickness (Inch):
7/16"
Thickness (Decimal Inch):
0.4375"
Thickness (mm):
11.10mm
Included Angle:
144 Degree
interval quantity:
1
SKU:
23016373
UPC:
Weight:
0.34 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
EDP NumberSV570720
Diameter (Decimal Inch)2.8300"
Diameter (Inch)2-5/6"
Diameter (mm)72.00mm
Thickness (Decimal Inch)0.4375"
Thickness (Inch)7/16"
Thickness (mm)11.10mm
Insert Height (Decimal Inch)1.2500"
Insert Height (Inch)1-1/4"
Insert Height (mm)31.80mm
SeriesSV570
Point Angle (Degree)144 Degree
Holder Type5
GradeM48
Trade NameSV Point
ApplicationP,K
CoatingHardslick
MaterialPremium Cobalt
Product TypeSpade Drill Insert
