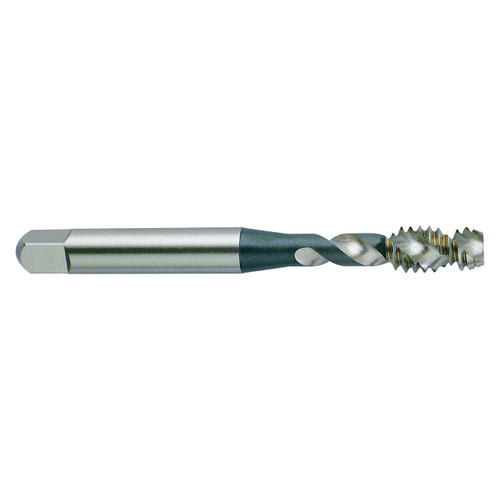

| Manufacturer Part Number | T2496323 |
| Diameter (Decimal Inch) | 0.1900" |
| Diameter (mm) | 4.83mm |
| Thread Size | #10 |
| Pitch | 24 TPI |
| Shank Diameter (Decimal Inch) | 0.1940" |
| Shank Diameter (mm) | 4.93mm |
| Overall Length (Decimal Inch) | 2.3800" |
| Overall Length (mm) | 60.45mm |
| Thread Length (Decimal Inch) | 0.5310" |
| Thread Length (mm) | 13.49mm |
| Square Length (Decimal Inch) | 0.2500" |
| Square Length (mm) | 6.35mm |
| Square Size (Decimal Inch) | 0.1520" |
| Square Size (mm) | 3.86mm |
| Neck Diameter (Decimal Inch) | 0.1310" |
| Neck Diameter (mm) | 3.33mm |
| Useable Length (Decimal Inch) | 0.9060" |
| Useable Length (mm) | 23.01mm |
| Drill Size (Decimal Inch) | 0.1521" |
| Drill Size (mm) | 3.86mm |
| Number of Flutes | 2 |
| Pitch Limit | H3 |
| Coolant Through | No |
| Shank Type | Square |
| Finish / Coating | Bright |
| Material | HSSE-V3 |
| Chamfer Length | 4P-5P |
| Chamfer Type | Plug |
| Product Type | Straight Flute Thread Mill |
