| Manufacturer Part Number | T2965C |
| Size & Pitch | 1 1/2-12 |
| Diameter (Decimal Inch) | 1.5000" |
| Diameter (mm) | 38.10mm |
| Overall Length (Decimal Inch) | 6.3800" |
| Length/Diameter | 3.0xD |
| Chamfer Type | Modified Bottoming |
| Overall Length (mm) | 162.05mm |
| Thread Length (Decimal Inch) | 0.8660" |
| Thread Length (mm) | 22.00mm |
| Square Length (Decimal Inch) | 1.1300" |
| Square Length (mm) | 28.70mm |
| Shank Diameter (Decimal Inch) | 1.2330" |
| Shank Diameter (mm) | 31.32mm |
| Square Size (Decimal Inch) | 0.9250" |
| Square Size (mm) | 23.50mm |
| Neck Diameter (Decimal Inch) | 1.2130" |
| Connection (mm) | 31.32 x 23.5mm |
| Connection (Decimal Inch) | 1.233 x 0.925" |
| Useable Length (Decimal Inch) | 3.5830" |
| Neck Diameter (mm) | 30.81mm |
| Drill Size (Decimal Inch) | 1.4242" |
| Drill Size (mm) | 36.18mm |
| Useable Length (mm) | 91.01mm |
| Thread Series | UNF |
| Pitch Limit | H5 |
| Chamfer Length | 2P-3P |
| Finish | TiCN |
| Blank Standard | 302A |
| Helix Angle (Degree) | 40 Degree |
| Number of Flutes | 4 |
| Tap Type | SPFL |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | T2-C |
| Material | HSS-EX |

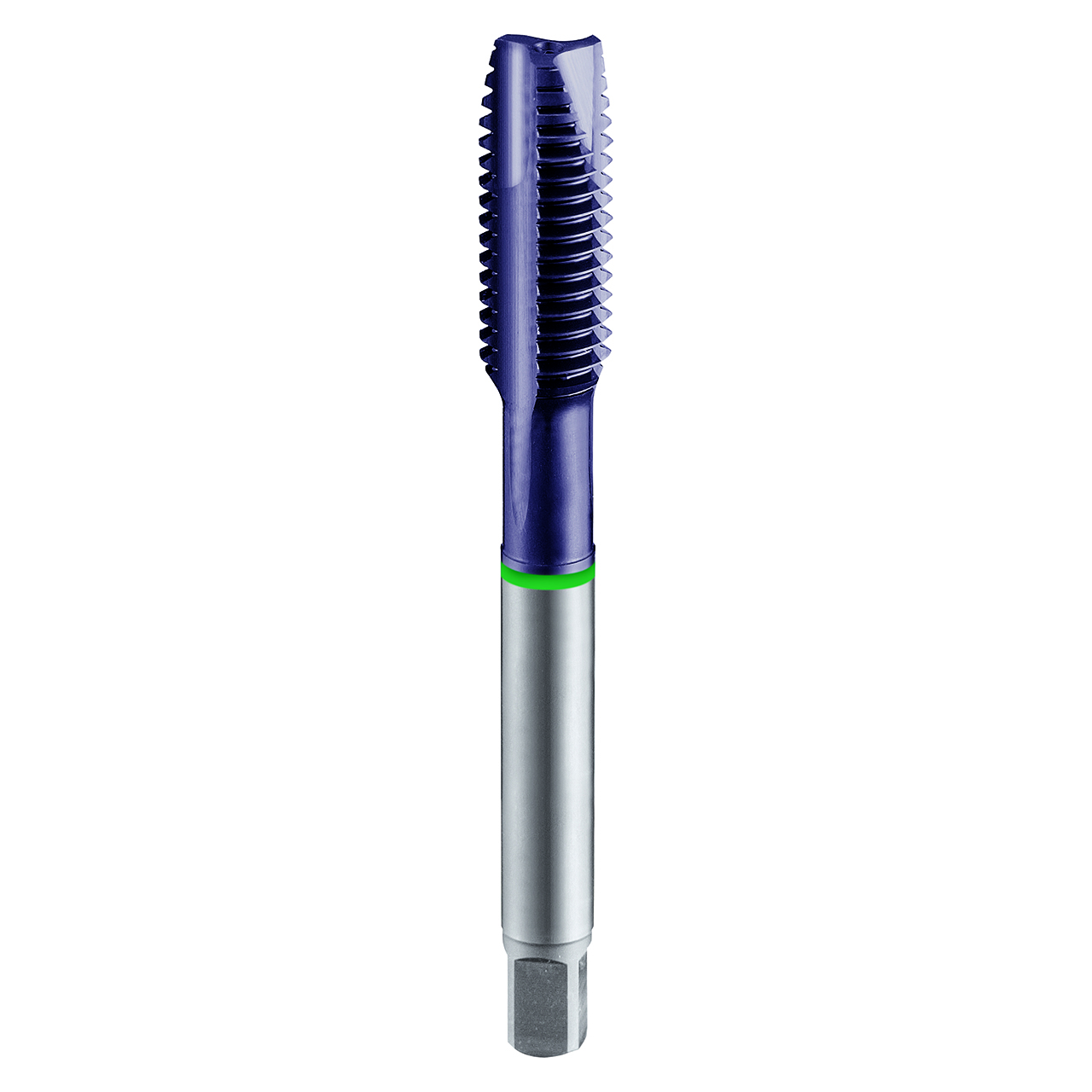

| Product Type | Spiral Flute Tap |
