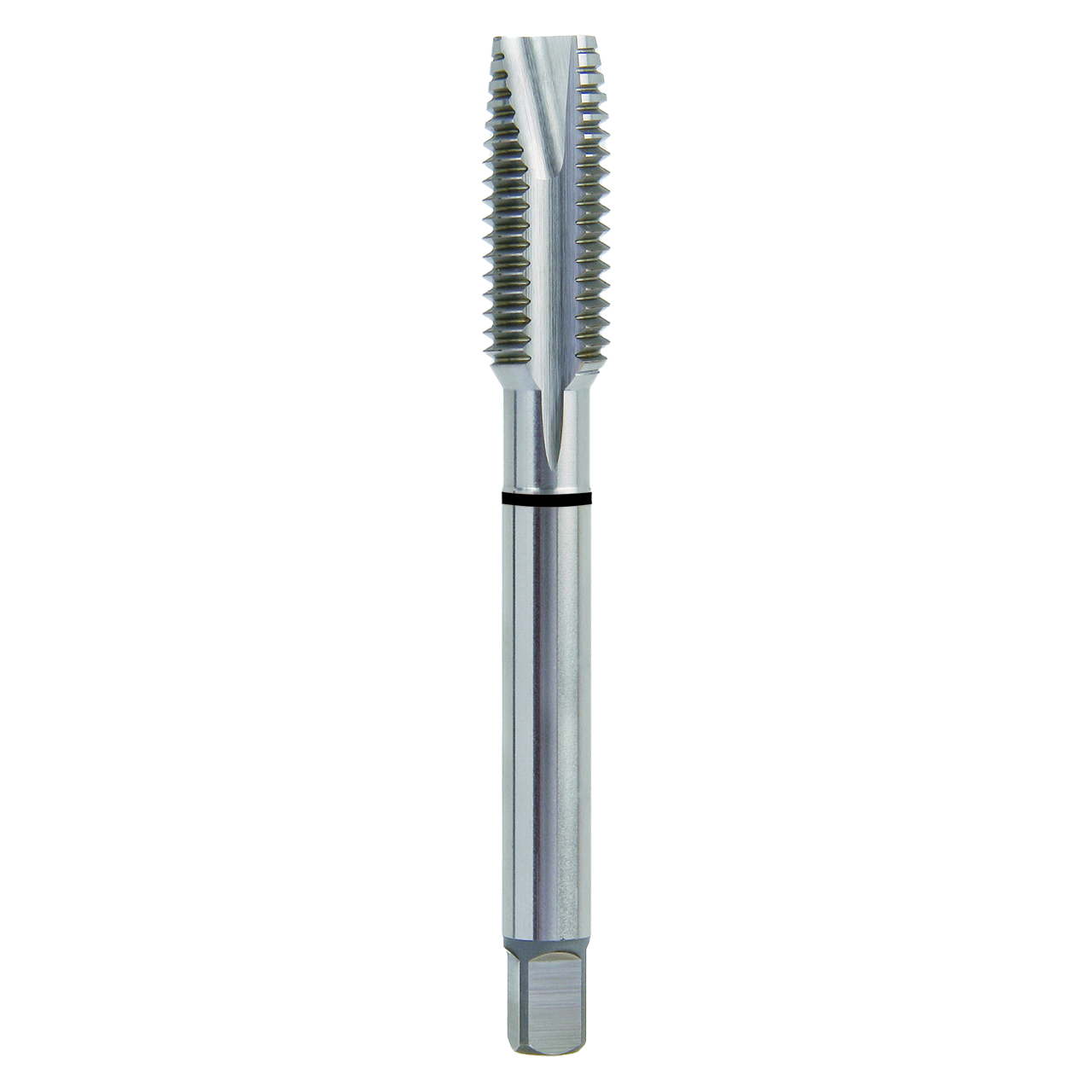

Product Specifications
| EDP Number | T4283 |
| Size & Pitch | #8-32 |
| Diameter (Decimal Inch) | 0.1640" |
| Diameter (mm) | 4.17mm |
| Overall Length (Decimal Inch) | 2.1300" |
| Length/Diameter | 3.0xD |
| Chamfer Type | Plug |
| Overall Length (mm) | 54.10mm |
| Thread Length (Decimal Inch) | 0.4530" |
| Thread Length (mm) | 11.51mm |
| Square Length (Decimal Inch) | 0.2500" |
| Square Length (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.1680" |
| Shank Diameter (mm) | 4.27mm |
| Square Size (Decimal Inch) | 0.1310" |
| Square Size (mm) | 3.33mm |
| Neck Diameter (Decimal Inch) | 0.1200" |
| Connection (mm) | 4.27 x 3.33mm |
| Connection (Decimal Inch) | 0.168 x 0.131" |
| Useable Length (Decimal Inch) | 0.7520" |
| Neck Diameter (mm) | 3.05mm |
| Drill Size (Decimal Inch) | 0.1356" |
| Drill Size (mm) | 3.44mm |
| Useable Length (mm) | 19.10mm |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Chamfer Length | 4P-5P |
| Finish | Bright |
| Blank Standard | 302A |
| Helix Angle (Degree) | 0 Degree |
| Number of Flutes | 3 |
| Tap Type | SPPT |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | T4 |
| Material | HSS-EX |
| Product Type | Spiral Point Tap |
