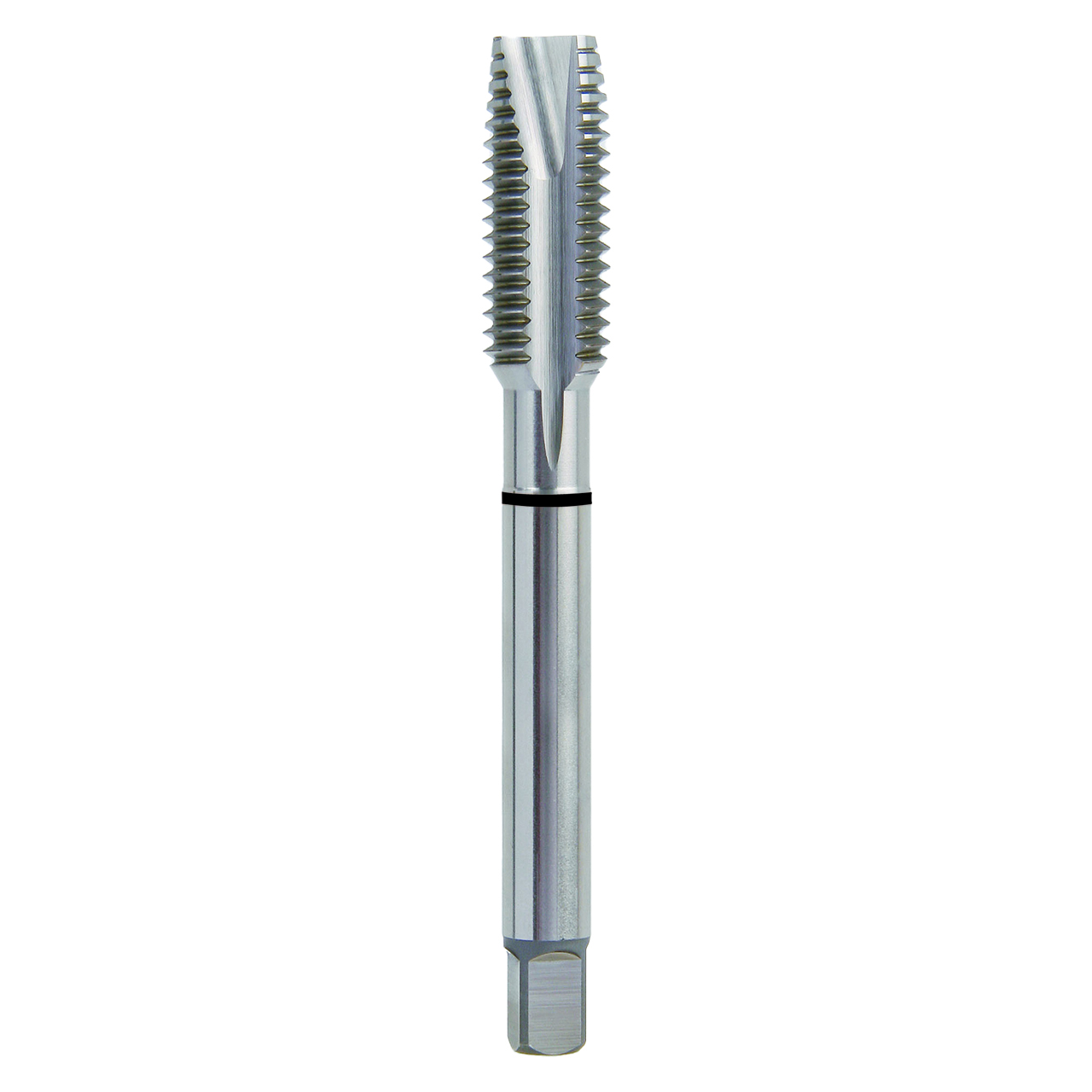

YG1 T4645C | 5/8-11 Size 0.6250" Diameter x 0.4800" Shank x 3.8100" OAL 3 Flute TICN Coated HSS-EX Spiral Flute Bottom Tap

$56.81 $40.90
(You save $15.91)
Ships:
From Partner Facility
Brand:
YG1
Thread Size (Inch):
5/8-11
Thread Limit:
H5
Number of Flutes:
3
Material:
High Speed Steel-EX
Finish/Coating:
TiCN
Through Coolant:
No
Travers SKU1:
12-679-332
Ships:
From Partner Facility
SKU:
15006496
UPC:
Weight:
0.20 LBS
Shipping:
Calculated at Checkout

Features

  • Performs well on all materials
  • Unique design works well on a wide range of materials thereby lowering the need to have multiple taps on hand for different materials.
Product Specifications
Size Type ANSI
Thread Size 5/8"-11
Thread Limit H5
Chamfer Style Plug
No. of Flutes 3
Finish Coating TiCN
Tool Material High Speed Steel EX
Cutting Direction Right Hand
Chamfer 4-5 Lead
Flute Length 1.083"
Coating TiCN
Flute Shape Straight Flute
Coolant Through No
General Application Through Hole Tapping
Helix Angle 0 35°
Hole Style Through hole
H Limit H5
Material To Be Machined Multi Material
Overall Length 3.81"
Series T4-C
Limit H5
Shank Diameter .480"
Shank Type Square Drive Shank
No. of Threads Per Inch 11
