| Manufacturer Part Number | T7315287 |
| Thread Size | M5 |
| Thread Size (Decimal Inch) | 0.197" |
| Thread Size (mm) | 5.00mm |
| Pitch | 0.80 |
| Thread Series | M |
| Pitch Limit | D4 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Blank Standard | 302 |
| Overall Length (Decimal Inch) | 2.380" |
| Overall Length (mm) | 60.45mm |
| Thread Length (Decimal Inch) | 0.880" |
| Thread Length (mm) | 22.35mm |
| Square Length (Decimal Inch) | 0.250" |
| Square Length (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.194" |
| Shank Diameter (mm) | 4.90mm |
| Square Size (Decimal Inch) | 0.152" |
| Square Size (mm) | 3.86mm |
| Drill Size (Decimal Inch) | 0.168" |
| Drill Size (mm) | 4.27mm |
| Connection Size (Decimal Inch) | 0.194" - 0.152" |
| Connection Size (mm) | 4.90 - 3.86mm |
| Length / Diameter | 2xD |
| Usable Length (Decimal Inch) | 0.880" |
| Usable Length (mm) | 22.35mm |
| Number of Flutes | 4 |
| Coating | Bright |
| Material | HSS |
| Shank Type | Square |
| Application | P,M,K,N |
| Series | T7315 |

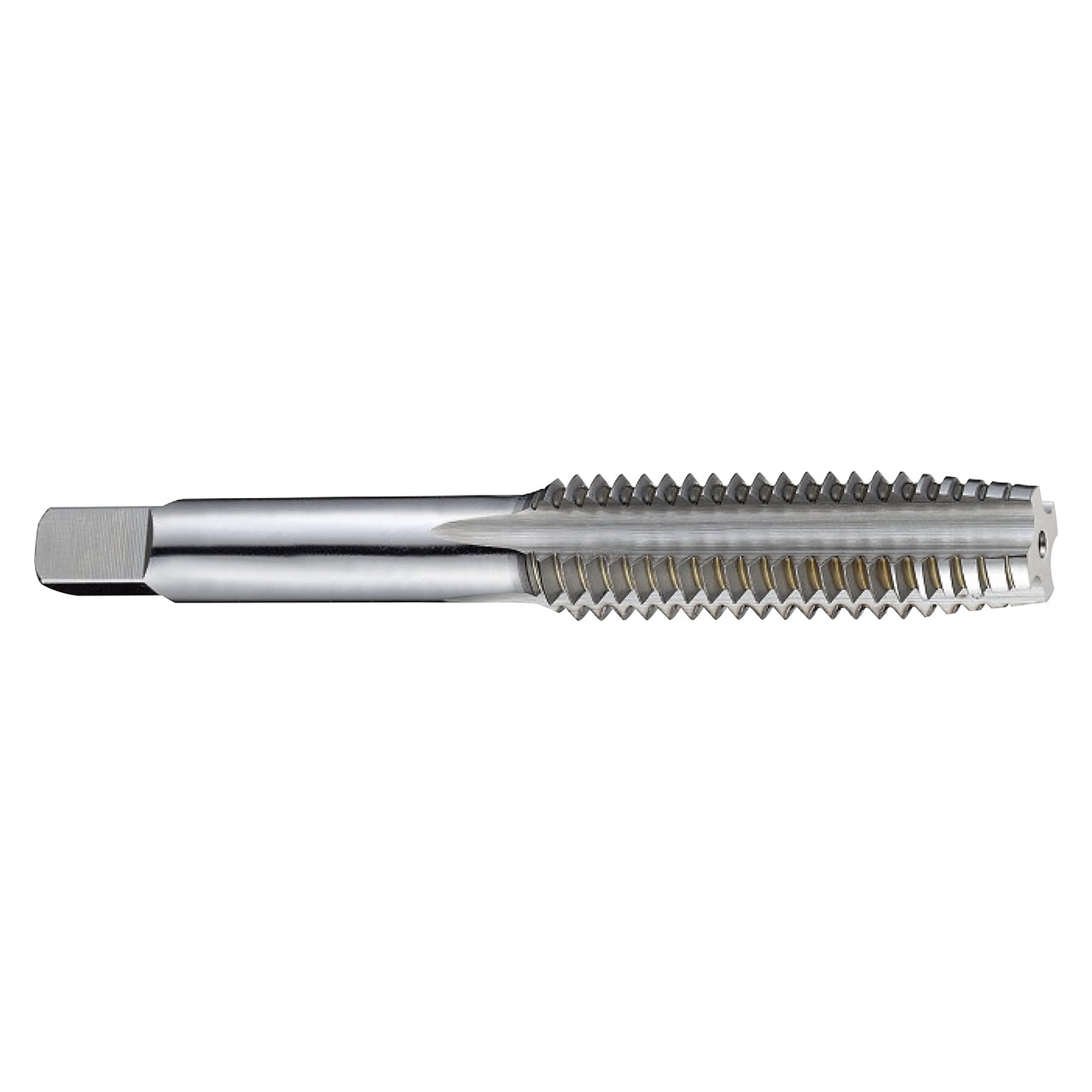

| Product Type | Straight Flute Tap |
